Tablet feeling for your application
EA uniTFTm SERIES
Features

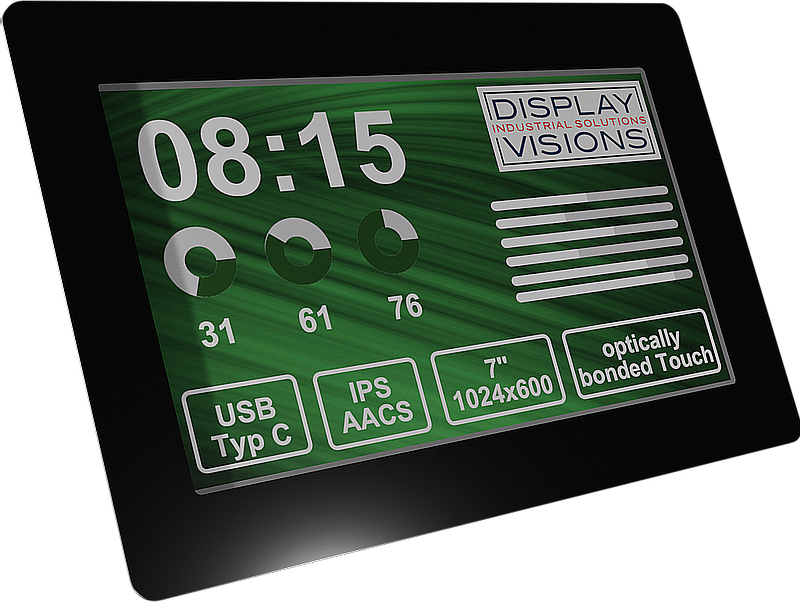

- 7.0" 1024x600 dots
- AACS-Display (all angle color stability, optimized backlight and IPS-Panel with widest viewing angle)
- Superbright LED backlight over 800 cd/m²
- Brilliant IPS panel >160° viewing angle
- Object-oriented screen layout
- Change object during run-time: size, shape, color, content
- Animate and move objects
- Alpha-blending
- Fonts: ASCII and Unicode
- Single supply 3.3 V or directly through USB
- Serial Interfaces: USB, RS232, SPI, I²C
- 8 digital, freely definable I/Os built in, expandable up to 136
- 4 analog inputs
- RTC Timer
- Flash-memory as storage for pictures, fonts, menus and log-files
- Internal functions for calculation as well as programmability
- Tone feedback build-in
ordering codeS
Displays |
|
7.0" IPS 1024 x 600 pixels, PCAP and white LED backlight |
EA uniTFTm070-ATC |
7.0" IPS as above but with 2 red MicroMatch connectors (uniTFT070-A compatible) |
EA uniTFTm070-BTC |
Accessories |
|
ZIF-connector 40 positions 0.5 mm pitch connector for FPC-cable |
EA WF050-40S |
FPC-cable 40 positions 0.5 mm pitch 102 mm long |
EA KF050-40 |
USB-Kabel Typ A -> USB C around 1 m |
EA KUSB-C |
MicroMatch THT, 26 position mating connector for soldering (2 pieces needed) |
EA B2B127M-26T |
MicroMatch ribbon cable, 26 position mating connector crimp (2 pieces needed) |
EA B2B127M-26Q |
Cable (25 cm) with crimped connectors |
EA KM-126 |

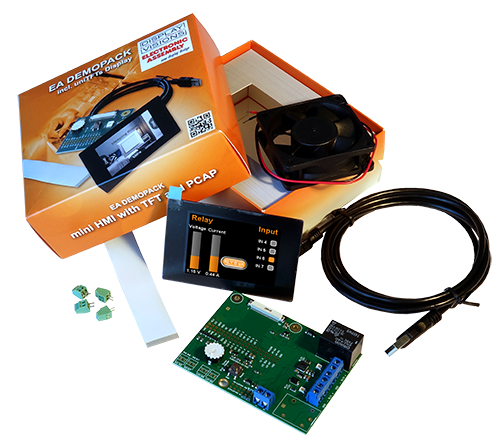

Demopack |
||
|
Various starter sets with 2.8" IPS display, PCAP and test board. For more information, please refer to the data sheet. |
|
Test board for all interfaces with additional level converters for SPI & I²C 3.3V and 5V, RS-232 ±12V, RS-485, USB Supply 5~30V |
||
Relay with current measurement and digital inputs up to 30V Supply 5~30V |
||
Test board with RGB LED (via SPI) and analog voltage measurement |
||
