Variables/ Registers / Arrays

Variables / Registers / Arrays #V

Command group to execute calculations and logical operations. With the help of the string files, internationalization (multiple languages) can be realized. There are registers for numbers and strings (can record characters up to 200), integer registers use signed 32-bit, floating-point registers use 23-bit mantissa, 8-bit exponent, 1-bit signed.

String file / multilingualism

Load string file

(Variable stringFile Load)

#VFL

StringfileName>

Delete string file

(Variable stringFile Delete)

#VFD

<StringfileName> (all)

Send number of loaded string files

(Variable stringFile Count)

#VFC

String register

Set string register (Variable Stringregister Set)	#VSS	String-ID, "String"; "String" [ID+1]; ...
Set string register from position (Variable Stringregister Postion)	#VSP	String-ID, Offset, "New String";
Replace string register from position (Variable Stringregister Replace)	#VSR	String-ID, Offset, "New String";
Cut out and replace sub-string from string register (Variable Stringregister Truncate)	#VST	String-ID, Offset, Number(until end)
Copy sub-string from string register (Variable Stringregister Copy)	#VSC	String-ID Target, String-ID Source, Offset (0), Number(until end)
split string registers in sub-strings (Variable Stringregister dElimiter)	#VSE	String-ID Target Start, String-ID Source, Seperator, Register-ID (=String-ID Target Start)
Set string register with date/time (Variable Stringregister Date)	#VSD	String-ID, "Dateformat"; date (act. time); 1/100sec
Set formatted string register (Variable Stringregister Formated)	#VSF	String-ID, "Formatted string"; Value, Value2, ...., ValueN
Read object strings (Variable Stringregister Object)	#VSO	String-ID, Obj-ID, ...
Send string register (ASCII) (Variable string Send Ascii)	#VSA	String-ID, ...
Send string register (Unicode) (Variable string Send Unicode)	#VSU	String-ID, ...
Sort string register (Variable Quicksort Strings)	#VQS	String-ID Start, String-ID End, Number (0), Offset(0)
Sort codes in string register (Variable Quicksort Codes)	#VQC	String-ID, Direction (1), Number (0), Offset (0)
Last error message in string register (Variable Stringregister Last error)	#VSL	String-ID, Delete(1)
Mix string register (Variable Mix Strings)	#VMS	String-ID Start, String-ID End
Mix codes in string register (Variable Mix Codes)	#VMC	String-ID, Number (0), Offset (0)
Define regular expression (Variable String regular eXpression)	#VSX	RegEx-ID, "regular expression"

Set register (integer) (Variable Register Integer)	#VRI	Register-ID, Value, Value1 [ID+1], ...
Set register (float) (Variable Register Float)	#VRF	Register-ID, Value, Value1 [ID+1], ...
Convert object string (Variable Register Object)	#VRO	Register-ID, Obj-ID, Obj-ID1[ID+1], ...
Convert string register to register (Variable Register dElimiter)	#VRE	Register-ID Start, String-ID Source, Seperator, Register-ID Name
Write register to RTC-RAM (Variable Register rtc Write)	#VRW	ID, Register-ID, Register-ID1, ...
Read register from RTC-RAM (Variable Register rtc Read)	#VRR	ID, Register-ID, Register-ID1, ...
Convert string register as calculation to register (integer) (Variable Calculate Integer)	#VCI	Register-ID, String-ID, String-ID1[ID+1], ...
Convert string register as calculation to register (float) (Variable Calculate Float)	#VCF	Register-ID, String-ID, String-ID1[ID+1], ...
Send register (Variable Register Send)	#VRG	Register-ID, ...
Sort register (Variable Quicksort Register)	#VQR	Register-ID Start, Register-ID End
Mix register (Variable Mix Register)	#VMR	Register-ID Start, Register-ID End

Array

Define array (Integer) (Variable Array Integer)	#VAI	Array-ID, Number, Type(0)
Define array (Float) (Variable Array Float)	#VAF	Array-ID, Number, Type(0)
Define array (Unicode string) (Variable Array Unicode)	#VAU	Array-ID, Anzahl, Stringlength, Type(0)
Delete array (free memory) ((Variable Array Delete)	#VAD	Array-ID
Fill array (Variable Array Set)	#VAS	Array-ID, Value(0, all Elements)
Assign values to array elements (with index) (Variable Array Value)	#VAV	Array-ID, Index, Value, Value[Index+1], ...
Assign values to array elements (with current write pointer) (Variable Array Write)	#VAW	Array-ID, Value 1, Value 2, ...
Set writing and/or reading pointer (Variable Array Pointer)	#VAP	Array-ID, WritePointer(-1), ReadPointer(-1), max. WritePointer
Sort array (Variable Quicksort Arrays)	#VQA	Array-ID, StartIndex, EndIndex(last Index), Stringlength(0), Stringoffest(0)
Mix array (Variable Mix Arrays)	#VMA	Array-ID, StartIndex, EndIndex(last Index)

String file / multilingualism

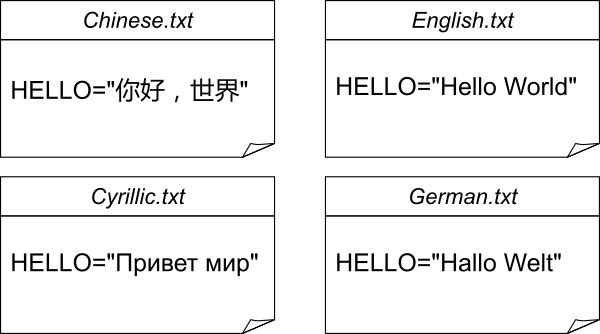

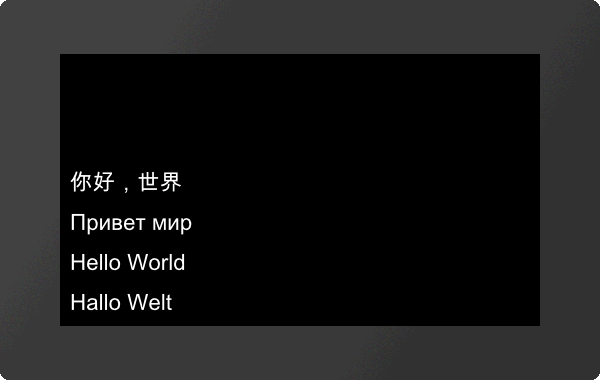

"Hello World" is placed in 4 different languages. It must be ensured that the selected font supports all necessary characters. In the following example "Arial Unicode MS" was used. The commands below assume that the string files (Chinese.txt, English.txt, Cyrillic.txt and German.txt) are already available on FLASH in the project path in the string's subfolder:

...

#VFL <P:string/German.txt>

#SSP 1,1,10,10,7,!HELLO!;

#VFD

#VFL <P:string/English.txt>

#SSP 2,1,10,50,7,!HELLO!;

#VFD

#VFL <P:string/Cyrillic.txt>

#SSP 3,1,10,90,7,!HELLO!;

#VFD

#VFL <P:string/Chinese.txt>

#SSP 4,1,10,130,7,!HELLO!;

#VFD

...

Load string file

#VFL	<StringfileName>

Load a set of strings. A maximum of 1000 strings from 8 different files can be loaded at the same time.

Delete string file

#VFD	<StringfileName> (alle)

Delete a set of strings or all. The files are physically retained on FLASH so that they can be reloaded.

Send number of loaded strings

#VFC

Places the number of loaded strings in the send buffer. The feedback is structured as follows:

ESC	V	F	C	Number	...
$1B	$56	$53	$43	16-Bit value	...

...

#VFL ...

#VFC

...

String register

Set string register

#VSS	String-ID, "String"; "String" [ID+1]; ...

The command saves the String in the register set (String ID [0 ... 199]).

String-ID	Value
0	"Hello World"
1	"Test Hello World"
2	"Hello World Test"

...

#VSS 0,"Hello World";"Test "S0;S0" Test";

...

Set string register from position

#VSP	String-ID, Offset, "New String";

The string of the location String-ID is deleted from the position offset and the new data ("New String") are added.

String-ID	Value
0	"Hello Test"
1	...
2	...

...

#VSS 0,"Hello World";

#VSP 0,6,"Test";

...

Replace string register from position

#VSR	String-ID, Offset, "New String";

The string of the location String-ID is replaced with the new data (("New String") from the position offset.

String-ID	Value
0	"Hello Test "
1	...
2	...

...

#VSS 0,"Hello World";

#VSR 0,6,"Test ";

...

Cut out and replace sub-string from string register

#VST	String-ID, Offset, Count(until end)

Delete the "left" part of the string register and move the part from offset to offset + count to the front. If count is negative, count is taken as second offset. It is then an area specification.

String-ID	Value
0	"World"
1	...
2	...

...

#VSS 0,"Hello World";

#VST 0,6,5

...

#VSS 0,"Hello World";

#VST 0,6-10

...

Copy sub-string from string register

#VSC	String-ID Target, String-ID Source, Offset (0), Count(until end)

Copy a substring from the string (String-ID Source), starting with the Offset and length Count, and paste it into another string register (String ID Target).

String-ID	Value
0	"Hello World"
1	"World"
2	...

...

#VSS 0,"Hello World";

#VSC 1,0,6,5

...

#VSS 0,"Hello World";

#VSC 1,0,6-10

...

Split string register in sub-strings

#VSE	String-ID Target Start, String-ID Source, Seperator, Register-ID (=String-ID Targert Start)

The string (String-ID Source) is split into substrings. The substrings are stored from the String ID Target Start. The number of substrings is stored in the Register-ID. The Seperator parameter specifies the separator.

String-ID	Value
0	"Entry1,Entry2,Entry3"
1	"Entry1"
2	"Entry2"
3	"Entry3"

Register-ID	Value
10	3

...

#VSS 0,"Entry1,Entry2,Entry3";

#VSE 1,0,?,,10

...

Set string register with date/time

#VSD	String-ID, "Dateformat"; date (act. time); 1/100sec

The time is stored in the string register as a formatted string. The presentation is based on the Dateformat. The structure is described in more detail in the sub-chapter Date formats.

String-ID	Value
0	...
1	"14:59:30"
2	...

...

#VSD 1,"%h:%m:%s";

...

Set formatted string register

#VSF	String-ID, "Formatted string"; Value, Value2, ...., ValueN

A formatted string is stored in the string register (String-ID). If the variable set is repeated, the format string is used again and stored in String-ID + 1

String-ID	Value
0	...
1	"Analog 3420"
2	...

...

#VSF 1,"Analog %d";(analog(0))

...

Read object strings

#VSO	String-ID, Obj-ID, ...

Object strings (Obj-ID) are stored in the string register (String-ID). This function is mainly used for EditBoxes.

String-ID	Value
0	...
1	"edit me"
2	...

...

#SED 1,"edit me" /**Default text for EditBox

#VSO 1,1

...

Send string register (ASCII)

#VSA	String-ID, ...

Place the content of the string register (ASCII formatted) in the send buffer. The feedback is structured as follows:

ESC	V	S	A	String-ID	Length	Char 1	Char 2	...	Char n	...
$1B	$56	$53	$41	16-Bit value	16-Bit value	8-Bit value	8-Bit value	8-Bit value	8-Bit value	...

...

#VSS0,"str";

#VSA 0

...

Send string register (Unicode)

#VSU	String-ID, ...

Place the content of the string register (Unicode formatted) in the send buffer. The feedback is structured as follows:

#	V	S	U	String-ID	Length	Char 1	Char 2	...	Char n	...
$1B	$56	$53	$55	16-Bit value	16-Bit value	16-Bit value	16-Bit value	16-Bit value	16-Bit value	...

...

#VSS0,"str";

#VSU 0

...

Sort string register

VQS	String-ID Start, String-ID End, Number (0), Offset(0)

The area of the string register (String-ID Start to String-ID End) is sorted. Number specifies the area that is considered for the sorting, with number = 0 the entire length is examined. Offset specifies the position in the string where the sorting begins.

String-ID	Value before	Value after
0	"Sort"	"Entry"
1	"Test"	"Exit"
2	"Entry"	"Sort"
3	"Exit"	"Test"

...

#VSS 0,"Sort";"Test";"Entry";"Exit";

#VQS 0,3,2,0

...

Sort codes in string register

VQC	String-ID, Direction (1), Number (0), Offset (0)

Codes within the string register (String-ID) are sorted. Number specifies the area that is considered for the sorting, with number = 0 the entire length is examined. Offset specifies the position in the string from which the sorting begins. The direction can also be specified:

Direction
0	Descending
1	Ascending

String-ID	Value
0	...
1	" HWdellloor"
2	...

...

#VSS 1,"Hello World"

#VQC 1

...

Last error message in string register

#VSL	String-ID, Delete(1)

Save the error messages from the terminal in a string register (String-ID). The parameter Delete specifies the deletion behavior of the error message:

Delete
0	Do not delete
1	Delete

Mix string register

#VMS	String-ID Start, String-ID End

The content of the registers remains, only the String-ID changes. A new assignment of string ID ⇔ content is now available.

Mix codes in string register

#VMC	String-ID, Number (0), Offset (0)

The content of a string register (String-ID) is interchanged randomly.

Number indicates the number of digits (= 0 complete string), Offset the starting point within the register.

Define regular expression (from V1.2)

#VSX	RegEx-ID, "regular expression"

Define a regular expression and save to RegEx-ID[0..9]. This command works together with many calculation commands to find specific strings in StringRegisters or StringArrays.

...

#VAU 0, 14,24, 0 /**Define unicode array, 14 entries, maximum stringlen=24

#VAW 0, "Alabama Slammer"; "Bloody Mary"; "Cosmopolitan"; "Fireball";

#VAW 0, "Kamikaze"; "Mai Tai"; "Mojito"; "Long Island Iced Tea"; "Pina Colada";

#VAW 0, "Gin Fizz"; "Jim Beam"; "Smirnoff"; "Tequila"; "Zombie"

#VSX 2, ".*am.*" /**set regular expression to RegExp-ID 2.

/**Positive result if character combination 'am' is in String

#VRI 3, -1 /**Use Register R3 as result. Preload with -1 as result =-1 no occurrence

#MFM 1 /**Loop start

#VRI 3, (strXA(2,0,++R3)) /**get new index where RegExp is true,

/**starting from last found index+1

#MFS (R3<0), 1 /**skip next line if no occurrence

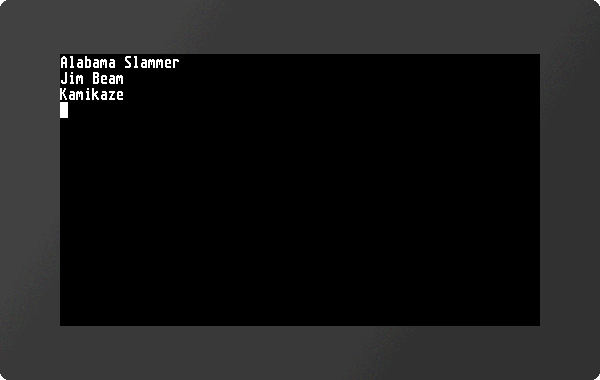

#YPA A0I(R3) "\r\n" /**print arraystring into terminal window and add a new line

#MFJ(R3>=0) 1 /**loop end, Jump back to start if RegExp was true last time

...

Supported regular expressions:

^ Start of string

$ End of string

. any single character

a? zero or one of a, i.e. the term is optional

a+ one or more of a

a* Zero or more of a

[ ] Range selection, e.g. [a-z]

[^ ] Range except selection range, e.g [^a-f]

( ) Capture everything enclosed max. 9 Subsections

| or

\ Cancel special character (standard character)

Register

Set register (Integer)

#VRI	Register-ID, Value, Value1 [ID+1], ...

The command saves an integer value (32 bits) in the register set (Register-ID [0 ... 199]).

Register-ID	Value
0	10
1	42
2	-8

...

#VRI 0,10,42,-8

...

If the values are to be transmitted binary (communication with external µC), the switch "G" is used.

Set register (float)

#VRF	Register-ID, Value, Value1 [ID+1], ...

The command saves a float value (32 bit) in the register set (Register-ID [0 ... 199]).

Register-ID	Value
0	10.25
1	42.39
2	-8.19

...

#VRF 0,10.25,42.39,-8.19

...

If the values are to be transmitted binary (communication with external µC), the switch "G" is used.

Convert object string

#VRO	Register-ID, Obj-ID, Obj-ID1[ID+1], ...

Object strings are stored in registers. The object string is converted into a numerical value (automatically fitting as an integer or float). This function is mainly used for EditBoxes.

Register-ID	Value
0	...
1	42.5
2	...

...

#SED 1,"42.5" /**Default text for EditBox

#VRO 1,1

...

Convert string register to register

#VRE	Register-ID Start, String-ID Source, Seperator, Register-ID Number

Convert numeric string (String-ID Source) to register (Register-ID Start). Separator specifies the separator between the values. The number of valid values after the conversion is specified in the optional parameter Register-ID Number

Register-ID	Value
0	10
1	42.39
2	-8
10	3

...

#VSS 0,"10,42.39,-8";

#VRE 0,0,?,,10

...

Write register to RTC-RAM

#VRW	ID, Register-ID, Register-ID1, ...

Buffer a Register-ID in the RAM of the RTC. ID [0 ... 7] indicates the storage space. The value is retained even after the module is switched off. A RTC needs to be connected (Attention: EA uniTFTs020-ATC and EA uniTFTs028-ATC).

Read register from RTC-RAM

#VRR	ID, Register-ID, Register-ID1, ...

Read back a value from the RTC-RAM (ID) and transfer it to the register (Register-ID). A RTC needs to be connected (Attention: EA uniTFTs020-ATC and EA uniTFTs028-ATC).

Convert string register as calculation to register (integer)

#VCI	Register-ID, String-ID, String-ID1[ID+1], ...

Interpret the content of a string register as a calculation string. The result is stored in the register (Register-ID)

Register-ID	Vaule
0	-8
1	50
2	42

...

#VSS 0,"R0+R1";

#VCI 2,0

...

Convert string register as calculation to register (float)

#VCF	Register-ID, String-ID, String-ID1[ID+1], ...

Interpret the content of a string register as a calculation string. The result is stored in the register (Register-ID)

Register-ID	Value
0	-8.21
1	50.89
2	42.68

...

#VSS 0,"R0+R1";

#VCF 2,0

...

Send register

#VRG	Register-ID, ...

Place the contents of the register in the send buffer. The feedback is structured as follows:

ESC	V	R	G	Register-ID	Type	Value	...
$1B	$56	$52	$47	16-Bit value	16-Bit value	32-Bit value	...

...

#VRF 0,...

#VRG 0

...

Sort register

#VQR	Register-ID Start, Register-ID End

The area of the registers (Register-ID Start to Register-ID End) are sorted.

Register-ID	Value before	Value after
0	2	-5
1	8	2
2	4	4
3	-5	8

...

#VRI 0,2,8,4,-5

#VQR 0,3

...

Mix register

#VMR	Register-ID Start, Register-ID End

The content of the registers remains, only the Register-ID changes. A new assignment of Register-ID ⇔ content is now available.

Array (from V1.1)

Define array (Integer)

#VAI	Array-ID, Number, Type(0)

The command defines an integer array (Array-ID [0 ... 199]) with the given Number of entries. The maximum length of the array respectively if the array has the desired length, can be checked with the calculation arE(). The Type specifies the behaviour when writing at the end of the array.

Type
0	Stop at end
1	Wrap around (ring buffer)

Define array (Float)

#VAF	Array-ID, Number, Type(0)

The command defines a float array (Array-ID [0 ... 199]) with the given Number of entries. The maximum length of the array respectively if the array has the desired length, can be checked with the calculation arE(). The Type specifies the behaviour when writing at the end of the array.

Type
0	Stop at end
1	Wrap around (ring buffer)

Array definieren (Unicode string) (from V1.2)

#VAU	Array-ID, Number, Stringlength, Type(0)

The command defines a string array (Array-ID [0 ... 199]) with the given Number of entries. The second parameter Stringlength gives the maximum length per entry. The maximum length of the array respectively if the array has the desired length, can be checked with the calculation arE(). The Type specifies the behaviour when writing at the end of the array.

Type
0	Stop at end
1	Wrap around (ring buffer)

Delete array (free memory)

#VAD

Array-ID

The command deletes an array (Array-ID [0 ... 199]) and releases the memory.

Fill array

#VAS	Array-ID, Value(0, all Elements), element index

The command fills all elements of the array (Array-ID [0 ... 199]) with the given Value. If Value paramter is not sent, then the whole array is filled with 0. On the other hand the element index can specify which elements get the new value.

Assign values to array elements (with index)

#VAV	Array-ID, Index, Value, Value[Index+1], ...

The command assigns new Values to array elements, starting with the array Index.

Assign values to array elements (with current write pointer)

#VAW	Array-ID, Value 1, Value 2, ...

The command assigns new Values to array elements, starting with the current write pointer.

Set write and*or reading pointer

#VAP	Array-ID, WritePointer(-1), ReadPointer(-1), max. WritePointer

The command sets the Write and / or Read pointer of the array (Array-ID [0 ... 199]). If the pointer should remain unchanged, the respective parameter must be set to -1.

Sort array

#VQA	Array-ID, StartIndex, EndIndex(last Index), Stringlength(0), Stringoffest(0)

The values of the array (Array-ID [0 ... 199]) are sorted in the specified range (StartIndex to EndIndex). The last two parameters Stringlength and Stringoffset are only used if it is a stringarray (#VAU). Stringlength (total =0) specifies the number of characters, Stringoffset the character position to be considered for sorting.

Shuffle array

#VMA	Array-ID, StartIndex, EndIndex(last Index)

The command shuffles the values of the array in the specified range (StartIndex to EndIndex). The values remain unchanged. Only the order (indexes) is adjusted. A new assignment of the array indexes ⇔ values is now available ....
