PWM Output #H
Command group for the PWM output
Set the PWM frequency and duty cycle (Hardware PWM Output) |
Frequency [32-Bit], On Value (no change), Total Value (no change) |
|
Change PWM duty cycle (Hardware PWM Dutycycle) |
On Value, Total Value (no change) |
Set the PWM frequency and duty cycle
#HFO |
Frequency [32-Bit], On Value (no change), Total Value (no change) |
Setting the PWM Frequency (32-bit value) (2Hz ... 1MHz).
Frequency |
|
0 |
Permanent low |
1 |
Permanent high |
The two optional parameters On Value and Total Value set the duty cycle:
DutyCycle = |
On Value |
|
Total Value |
|

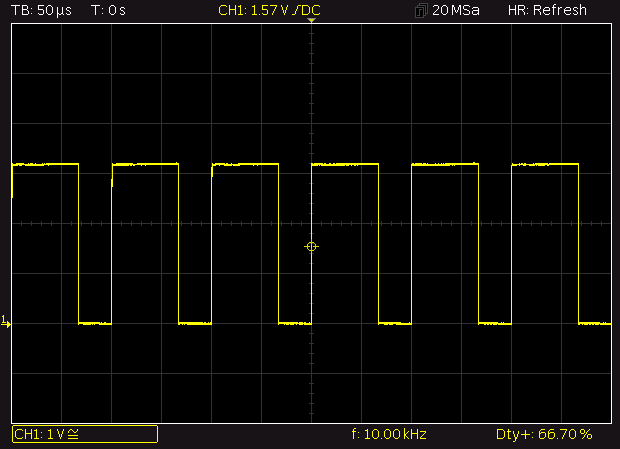

... #HFO 10000,2,3 ... |
#HFD |
On Value, Total Value (no change) |
The command sets the duty cycle with the two parameters On Value and Total Value. The frequency is steady:
DutyCycle = |
On Value |
|
Total Value |
|

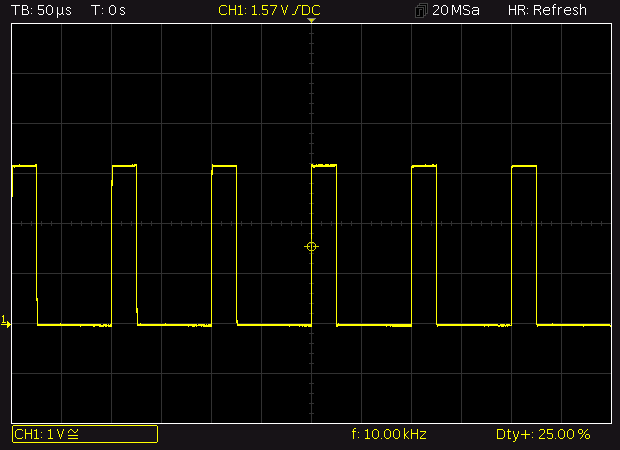

... #HFD 1,4 ... |
