Draw / graphic primitives #G

Command group to show graphical simple objects:

Place rectangle

(Graphic Rounded Rectangle)

#GRR

Obj-ID, DrawStyle-No, x, y, Anchor, Width, Height(=Width), Radius (0), FrameThickness(0), Angle(0)

Place regular polygon

(Graphic Geometric Polygon)

#GGP

Obj-ID, DrawStyle-No, x, y, Anchor, Radius, Corners, FrameThickness(0), Angle(0)

Place star

(Graphic Geometric Star)

#GGS

Obj-ID, DrawStyle-No, x, y, Anchor, Radius1, Radius2, Tip, FrameThickness(0), Angle(0)

Place circle/ellipse

(Graphic Ellipse Total)

#GET

Obj-ID, DrawStyle-No, x, y, Anchor, RadiusX, RadiusY(=RadiusX), FrameThickness(0), Angle(0)

Place circular sector/piece of cake

Graphic Ellipse Pie)

#GEP

Obj-ID, DrawStyle-No, x, y, Anchor, RadiusX, RadiusY, StartAngle, EndAngle, Angle(0)

Place circular segment

(Graphic Ellipse Segment)

#GES

Obj-ID, DrawStyle-No, x, y, Anchor, RadiusX, RadiusY, StartAngle, EndAngle, WiAnglekel(0)

Place arc

(Graphic Ellipse Arc)

#GEA

Obj-ID, DrawStyle-No, x, y, Anchor, RadiusX, RadiusY, StartAngle, EndAngle, Border(0), Angle(0)

Place polyline

(Graphic Polygon Line)

#GPL

Obj-ID, DrawStyle-No, x1, y1, x2, y2, ... xn, yn

Polylinie settings

(Graphic Polygon Option))

#GPO

Obj-DI, Fast drawing

Place irregular polygon

(Graphic Polygon Fill)

#GPF

Obj-ID, DrawStyle-No, x1, y1, x2, y2, ... xn, yn

Add points to polyline/polygon

(Graphic Polygon Add)

#GPA

Obj-ID, x1, y1, x2, y2, ... xn, yn

Place path

(Graphic Path Place)

#GPP

Obj-ID, DrawStyle-No, x, y, Segment1, ..., SegmentN

Add sub-path to path

(Graphic Path add Subpath)

#GPS

Obj-ID, Segment1, ..., SegmentN

Place path (segments as string)

(Graphic Path String)

#GPT

Obj-ID, DrawStyle-No, x, y, "Segment1, ..., SegmentN"

Define marker for path

(Graphic Path Marker)

#GPM

Obj.-ID, Marker Obj-ID

Geometrical figures

Place rectangle

#GRR

Obj-ID, DrawStyle-No, x, y, Anchor, Width, Height(=Width), Radius (0), FrameThickness(0), Angle(0)

The command places a rectangle with the Anchor and the Width at the position x, y. The appearance of the rectangle is determined with the DrawStyle (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. If no Height is specified, the height is set to the width (square). A Radius can optionally be specified. This rounds off the corners. It is also possible to determine a FrameThickness. Rotation around the anchor (Angle) can also be set.

...

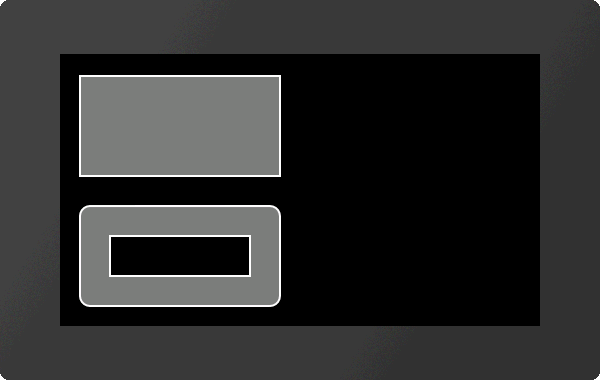

#GRR 1,1,20,150,7,200,100

#GRR 2,1,20,20,7,200,100,10,30

...


Place regular polygon

#GGP

Obj-ID, DrawStyle-No, x, y, Anchor, Radius, Corners, FrameThickness(0), Angle(0)

The command places a regular polygon with the Anchor and the given number of Corners at the position x, y. With the DrawStyle the appearance of the n-corner is determined (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. The Radius determines the size of the figure. It is also possible to determine a FrameThickness. Rotation around the anchor (Angle) can also be set. If anchor = 0, the construction point is used.

...

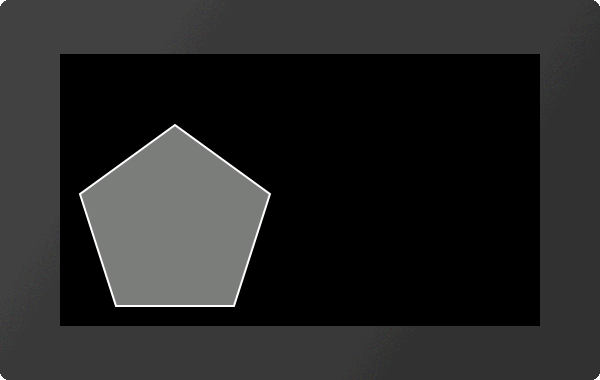

#GGP 1,1,20,20,7,100,5

...

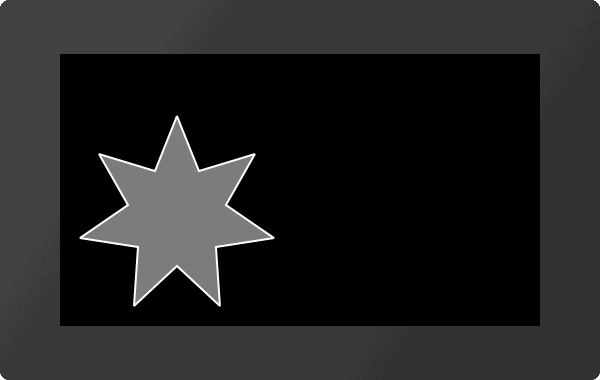

Place star

#GGS

Obj-ID, DrawStyle-No, x, y, Anchor, Radius1, Radius2, Tip, FrameThickness(0), Angle(0)

The command places a star with the Anchor at the position x, y. The appearance of the star is determined with the DrawStyle (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. The first tip is set to Radius1 above the center point. Then the connection to Radius2 is made then back to Radius1 etc. until the number of Tips is reached. It is also possible to determine a FrameThickness. Rotation around the anchor (Angle) can also be set. If anchor = 0, the construction point is used.

...

#GGS 1,1,20,20,7,100,50,7

...


Place circle/ellipse

#GET

Obj-ID, DrawStyle-No, x, y, Anchor, RadiusX, RadiusY(=RadiusX), FrameThickness(0), Angle(0)

The command places an ellipse with the Anchor and the RadiusX at the position x, y. The appearance of the circle is determined with the DrawStyle (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. If no RadiusY is specified, it is set to RadiusX (circle). It is also possible to determine a FrameThickness. Rotation around the anchor (Angle) can also be set.

...

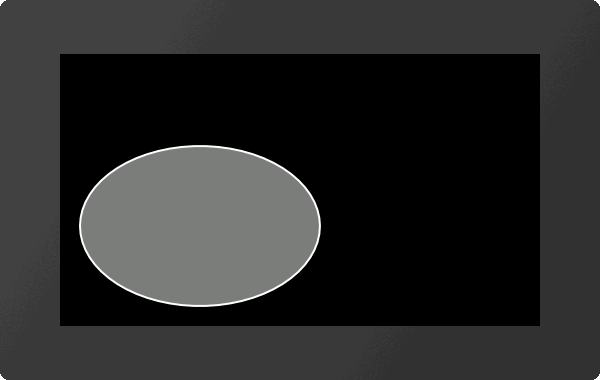

#GET 1,1,20,20,7,120,80

...

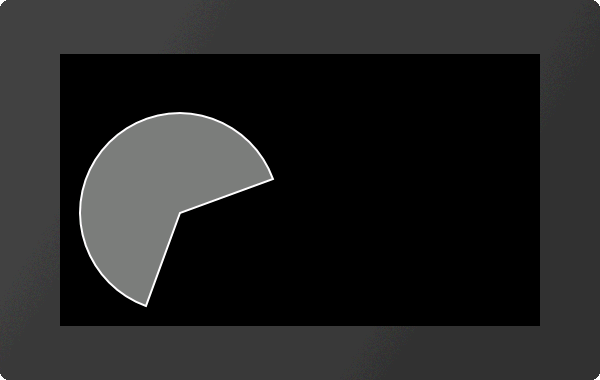

Place circular sector/piece of cake

#GEP

Obj-ID, DrawStyle-No, x, y, Anchor, RadiusX, RadiusY, StartAngle, EndAngle, Angle(0)

The command places a circle sector / piece of cake with the Anchor, the RadiusX and the RadiusY at the position x, y. Start-/EndAngles indicate the size of the piece. With the DrawStyle the appearance of the circle sector is determined (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. If no RadiusY is specified, it is set to RadiusX (circle). Rotation around the anchor (Angle) can also be set.

...

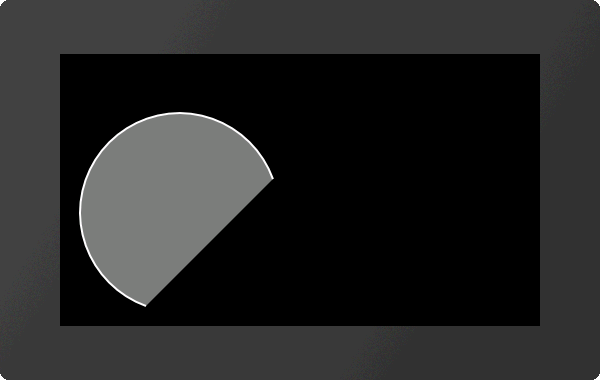

#GEP 1,1,20,20,7,100,100,20,250

...

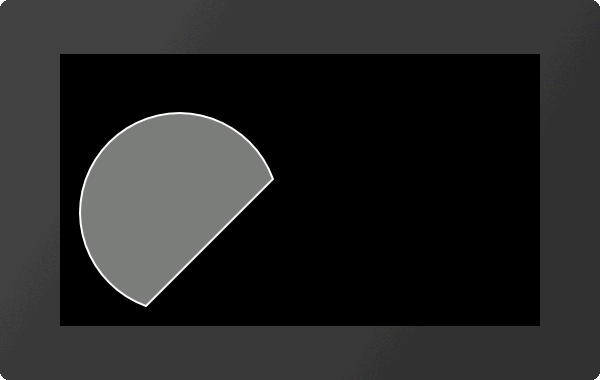

Place circular segment

#GES

Obj-ID, DrawStyle-No, x, y, Anchor, RadiusX, RadiusY, StartAngle, EndAngle, Angle(0)

The command places a segment of a circle with the Anchor, the RadiusX and the RadiusY at the position x, y. Start-/ EndAngles indicate the size of the piece. The appearance of the circle segment is determined with the DrawStyle (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. If no RadiusY is specified, it is set to RadiusX (circle). Rotation around the anchor (Angle) can also be set.

...

#GES 1,1,20,20,7,100,100,20,250

...


Place arc

#GEA

Obj-ID, DrawStyle-No, x, y, Anchor, RadiusX, RadiusY, StartAngle, EndAngle, Border(0), Angle(0)

The command places an arc with the Anchor, the RadiusX and the RadiusY at the position x, y. Start-/ EndAngles indicate the size of the piece. The appearance of the circular arc is determined with the DrawStyle (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. If no RadiusY is specified, it is set to RadiusX (circle). It is also possible to determine a frame thickness. Rotation around the anchor (Angle) can also be set.

...

#GEA 1,1,20,20,7,100,100,20,250

...

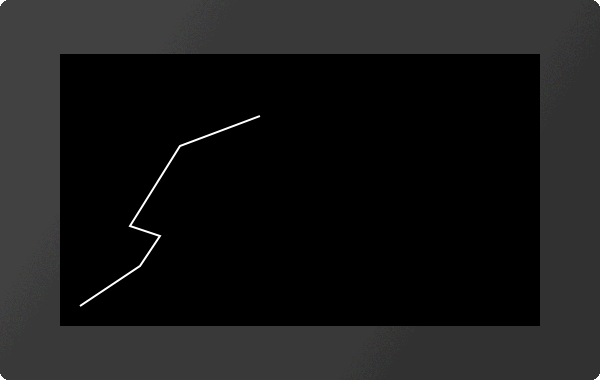

Place polyline

#GPL

Obj-ID, DrawStyle-No, x1, y1, x2, y2, ... xn, yn

The command draws a polyline with the coordinates [x1, y1], [x2, y2], ..., [xn, yn]. The appearance of the polyline is determined with the DrawStyle (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection.

...

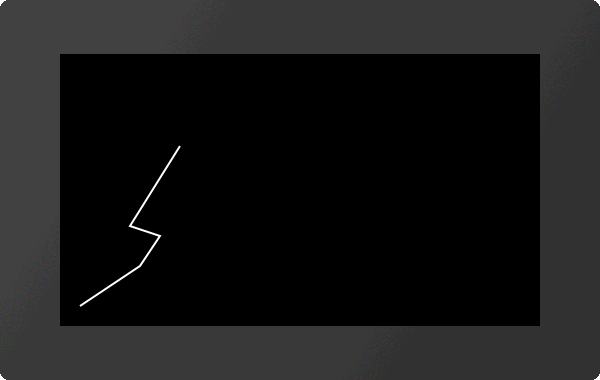

#GPL 1,1,20,20,80,60,100,90,70,100,120,180

...

Polyline settings

#GPO

Obj-DI, Fast drawing

This command enables / disables a routine for accelerated drawing (Fast drawing) of polylines. However, the edges of the lines are ignored and only single lines are drawn.

Fast drawing

inactive (0)

active (1)



Place irregular polygon

#GPF

Obj-ID, DrawStyle-No, x1, y1, x2, y2, ... xn, yn

The command draws a filled polygon with the coordinates [x1, y1], [x2, y2], ..., [xn, yn]. The appearance of the polygon is determined with the DrawStyle (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. From the last given point the shape is automatically closed.

...

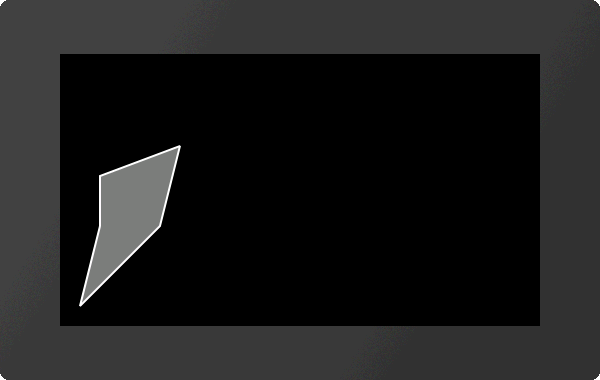

#GPF 1,1,20,20,100,100,120,180, 40,150,40,100

...


Add points to polyline/polygon

#GPA

Obj-ID, x1, y1, x2, y2, ... xn, yn

The command adds coordinates [x1, y1], [x2, y2], ..., [xn, yn] at the end of a polyline or polygon. In the case of a polygon, the figure is closed automatically.

...

#GPL 1,1,20,20,80,60,100,90,70,100,120,180

#GPA 1,200,210

...


Place path

#GPP

Obj-ID, DrawStyle-No, x, y, Segment1, ..., SegmentN

The command draws a path with the starting position x, y. The appearance of the polygon is determined with the DrawStyle (DrawStyle-No.). This is explained in more detail in the DrawStyle subsection. The individual segments follow. If the segment commands are capitalized (e.g.? H,? L, ...), absolute coordinates are used - for lower case letters (e.g.? H,? L, ...) relative coordinates. The following segment commands are available:

Segment

Beispiel

Horizontal line

?H x

?H 140

Vertical line

?V y

?V 80

Line

?L x, y

?L 140,80

Arc

?C Arc, Radius, x, y

?C 2,50,120,80

Elliptical arc

?E Arc,Radius-x, Radius-y, Angle, x, y

?E 1,80,40,10,180,80

Quadratic Bézier-curve

?Q c1x, c1y, x, y

?Q 60,100,140,80

Smooth quadratic Bézier-curve

(the previous control point is mirrored)

?R x, y

?R 220,100

Cubic Bézier-curve

?S c1x, c1y, c2x, c2y, x, y

?S 60,100,100,120,140,80

Smooth cubic Bézier-curve

(the previous control point is mirrored)

?T c2x, c2y, x, y

?T 200,60,220,100

Close path

?Z



Jump to new start position (sub-path)

?M x, y




In the case of a circular arc or elliptical circular arc, the circular arc must be specified more precisely:

Arc

0

1

2

3

Small arc

Large arc

Counterclockwise

Clockwise

Counterclockwise

Clockwise


...

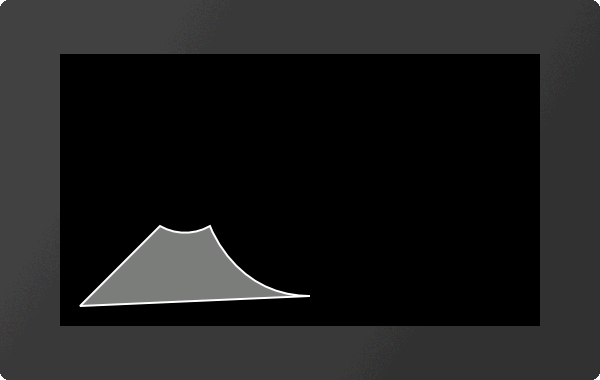

#GPP 1,1,20,20,?L100,100,?C0,50,150,100,?T175,30,250,30,?Z

...


Add sub-path to path (from V1.1)

#GPS

Obj-ID, Segment1, ..., SegmentN

Additional Segments will be added to an existing path.


Place path (segments as string)

#GPT

Obj-ID, DrawStyle-No, x, y, "Segment1, ..., SegmentN"

The command does the same as #GPP. However, the individual segments are passed as a string.


Define marker for path

#GPM

Obj.-ID, Marker Obj-ID

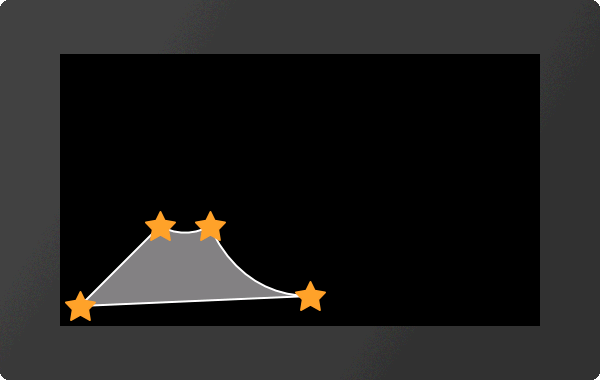

Any existing object (Marker Obj.-ID) can be used as a marker for a path (Obj-ID).

...

#GPM 1,2

...
