Styles #C
Command group to create styles. The look of each object is based on a style appropriate to the object type. The maximum number of styles available for each style is 500. |
|
DrawStyle
Delete filling (Style Fill Delete) |
DrawStyle-No. |
|
Define filling width color (Style Fill Color) |
DrawStyle-No., RGB, Opacity(100) |
|
Define filling with linear gradient (Style Fill Linear) |
DrawStyle-No, ColorRamp-No, Angle(0) |
|
Define filling with radial gradient (Style Fill Radial) |
DrawStyle-No, ColorRamp-No, FocusX (5000), FocusY (0) |
|
Define filling with conical gradient (Style Fill Conial) |
DrawStyle-No, ColorRamp-No, FocusX(5000), FocusY(0), Direction(1) |
|
Define filling with pattern (Style Fill Pattern) |
DrawStyle-No, <PatternName> Size(100), Angle(0), RepeatMode(0), FocusX(5000), FocusY(0), PatternAnchor(5) |
|
Change angle of linear gradient (Style Fill Angle) |
DrawStyle-No, Angle |
|
Change gradient (Style Fill Garient) |
DrawStyle-No, ColorRamp-No. |
|
Change focus of gradient (Style Fill Focus) |
DrawStyle-No, FocusX, FocusY, PatternAnchor (no change) |
|
Change pattern (Style Fill pattern Name) |
DrawStyle-No, <PatternName> |
|
Change size of pattern (Style Fill Size) |
DrawStyle-No, Size |
|
Change repeat mode of pattern (Style Fill Tilemode) |
DrawStyle-No, RepeatMode |
|
Delete line (Style Line Delete) |
DrawStyle-No. |
|
Define line color and thickness (Style Line Style) |
DrawStyle-No, RGB, Opacity(100), Width(1), JoinStyle(0), LinePattern-No (0) |
|
Change line color (Style Line Color) |
DrawStyle-No, RGB, Opacity (no change) |
|
Change line with (Style Line Width) |
DrawStyle-No, Width |
|
Change join style (Style Line End) |
DrawStyle-No, JoinStyle |
|
Chance line pattern (Style Line dash Pattern) |
DrawStyle-No, RGB, LinePattern-No |
TextStyle
Define TextStyle (Style Text Font) |
TextStyle-No, <FontName>, Size(20), Alignment(0), DrawStyle-No.(0), Italic(0), LineSpace (0), CharacterSpace (0) |
|
Change font (Style Text Name) |
TextStyle-No, <FontName> |
|
Change size (Style Text Size) |
TextStyle-No, Size |
|
Change alignment (Style Text Align) |
TextStyle-No, Alignment |
|
Change DrawStyle (Style Text drawstyle) |
TextStyle, DrawStyle-No |
|
Set italic font (Style Text Italic) |
TextStyle, Italic |
|
Change spacing (Style Text Gap) |
TextStyle, LineSpace, CharacterSpace (no change) |
|
Change space width (Style Text space Width) |
TextStyle-No, SpaceCode, SpaceWidth(100) |
ButtonStyle
Define picture ButtonStyle (Style Button Picture) |
ButtonStyle-No, <ButtonNameNormal>, <ButtonNameDown> (=Normal), Width(0), Height(0) |
|
Define ButtonStyle (Style Button Drawstyle) |
ButtonStyle-No, DrawStyle-Normal, DrawStyle-Down (=Normal), Width (0), Height (0), Radius(0) |
|
Define Text (Style Button Textstyle) |
ButtonStyle-No, TextStyleNormal, TextStyleDown (=Normal), OffsetX(0), OffsetY(0) |
|
Define DownEvent (Style Button Offset) |
ButtonStyle-No, OffsetX(0), OffsetY (=OffsetX), Size(100), Angle(0) |
|
Define sound for DownEvent (Style Button Sound) |
ButtonStyle-No, <SoundName> |
|
Define disabled ButtonStyle (Style Button Greyout) |
R (-30), G (=R), B (=R), Opacity(0) |
ColorRamp
Define ColorRamp (Style Color Ramp) |
ColorRamp-No, Offset1, RGB1, Transparency1, ... Offset10, RGB10, Transparancy10 |
|
Animate ColorRamp (Style Animate Colorramp) |
ColorRamp-No, Type (1), Time (100) |
LinePattern
Define line pattern (Style Dash Pattern) |
LinePattern-No, Offset, Set1, Space1, ..., Set10, Space10 |
|
Animate line pattern (Style Animate Dashpattern) |
LinePattern-No, Type (1), Time (100) |
DrawStyle
#CFD |
DrawStyle-No. |
This command deletes the filling of the DrawStyle (DrawStyle No.).
#CFC |
DrawStyle-No., RGB, Opacity(100) |
A full-color (RGB) fill is assigned to the DrawStyle (DrawStyle No.). The Opacity can be set as a percentage
|

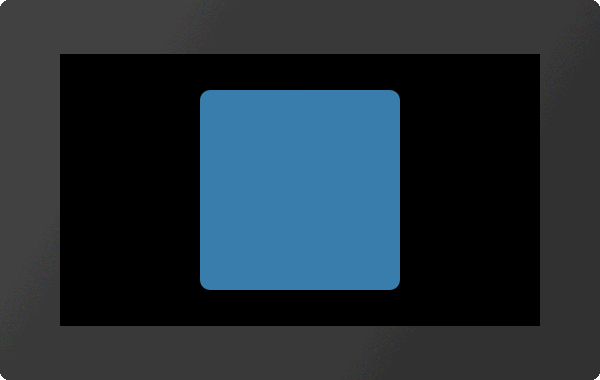

... #CFC 15,$3B7EAE ... |
Define filling with linear gradient
#CFL |
DrawStyle-No, ColorRamp-No, Angle(0) |
The DrawStyle (DrawStyle No.) is assigned a linear gradient (ColorRamp-No.). The gradient must be defined in advance with the #CCR command. The orientation can optionally be specified (Angle in degrees).
|

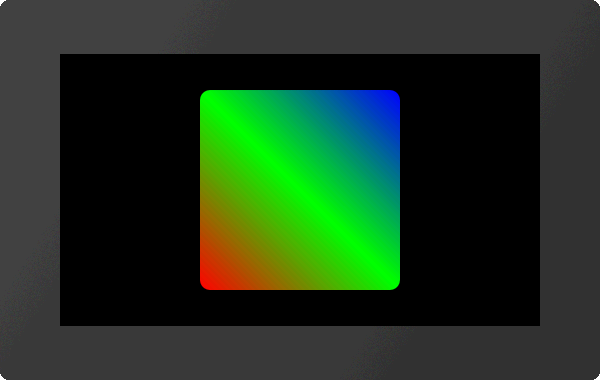

... #CCR 5,0,$FF0000,100,50,$00FF00,100,100,$0000FF,100 #CFL 15,5,45 ... |
Define filling with radial gradient
#CFR |
DrawStyle-No, ColorRamp-No, FocusX (5000), FocusY (0) |
The DrawStyle (DrawStyle No.) is assigned a radial gradient (ColorRamp-No). The gradient must be defined in advance with the #CCR command. The focus determines the starting point of the course as a percentage. With FocusX = 5000, the anchor to be used as the starting point of the gradient is specified with FocusY.
|

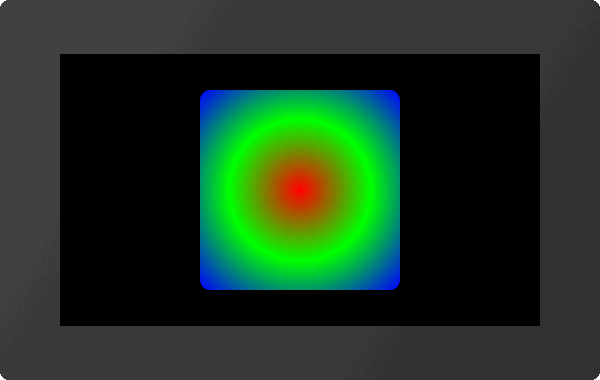

... #CCR 5,0,$FF0000,100,50,$00FF00,100,100,$0000FF,100 #CFR 15,5,5000,5 ... |
Define filling with conical gradient
#CFK |
DrawStyle-No, ColorRamp-No, FocusX(5000), FocusY(0), Direction(1) |
The DrawStyle (DrawStyle No.) is assigned a conical gradient (ColorRamp-No). The gradient must be defined in advance with the #CCR command. The focus determines the starting point of the course as a percentage. With FocusX = 5000, the anchor to be used as the starting point of the gradient is specified with FocusY. The optional parameter Direction specifies the direction of rotation.
Direction |
|
0 |
Counterclockwise |
1 |
Clockwise |
|

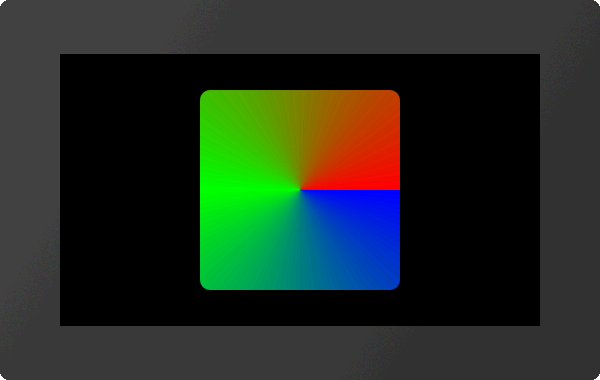

... #CCR 5,0,$FF0000,100,50,$00FF00,100,100,$0000FF,100 #CFK 15,5,5000,5,0 ... |
#CFP |
DrawStyle-No, <PatternName> Size(100), Angle(0), RepeatMode(0), FocusX(5000), FocusY(0), PatternAnchor(5) |
A pattern (<PatternName>) is used as a fill for the DrawStyle (DrawStyle No.). The size is given proportionally as a percentage. The optional parameter RepeatMode specifies the type of image repetition:
RepeatMode |
|
0 |
Repeat the pattern |
1 |
Mirror the pattern |
The focus determines the percentage of the starting point of the pattern. With FocusX = 5000, the anchor to be used as the starting point of the pattern is specified with FocusY. The pattern is set directly to the focus point with the PatternAnchor.
|

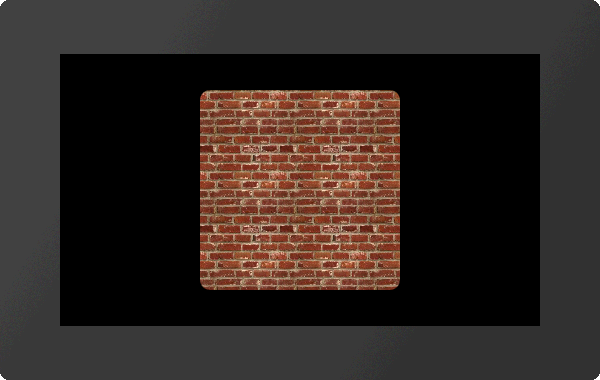

... #CFP 15,<P:pattern/Brick.epg>,40 ... |
... #CFP 15,"Brick";40 ... |
Change angle of linear gradient
#CFA |
DrawStyle-No, Angle |
The Angle of a linear gradient is changed.
#CFG |
DrawStyle-No, ColorRamp-No. |
A new gradient is assigned to the DrawStyle (ColorRamp-No)
#CFF |
DrawStyle-No, FocusX, FocusY, PatternAnchor (no change) |
The focus determines the starting point of the course or the pattern as a percentage. With FocusX = 5000, the anchor to be used as the starting point of the course is specified with FocusY. The last parameter (PatternAnchor) is only necessary for patterns: The pattern is set directly to the focus point with the PatternAnchor.
#CFN |
DrawStyle-No, <PatternName> |
A new pattern (<PatternName>) will be assigned to the filling.
#CFS |
DrawStyle-No, Size |
The command changes the size of the pattern. The Size is given proportionally as a percentage.
#CFT |
DrawStyle-No, RepeatMode |
The command specifies how the individual patterns are lined up:
RepeatMode |
|
0 |
Repeat the pattern |
1 |
Mirror the pattern |
#CLD |
DrawStyle-No |
This command deletes the line of the DrawStyle (DrawStyle No.).
Define line color and thickness
#CLS |
DrawStyle-No, RGB, Opacity(100), Width(1), JoinStyle(0), LinePattern-No (0) |
Der Befehl definiert die Linienfarbe (RGB), die Deckkraft (Transparenz in Prozent), sowie die Linien-Dicke in Pixeln. Der Parameter Verbindung bestimmt die Art des Linienendes bzw, die Verbindung zweier Linien:
The command defines the line color (RGB), the Opacity (in percent) and the line Width in pixels. The JoinStyle parameter determines the type of line end or the connection of two lines:
JoinStyle |
|
0 |
Miter |
1 |
Round |
With the last parameter, the style of the line can optionally be set (e.g. dashed). For this, a line pattern (LinePattern-No.) must be defined.
#CLC |
DrawStyle-No, RGB, Opacity (no change) |
Assign a new color (RGB) to the line.
#CLW |
DrawStyle-No, Width |
Change the thickness of the line.
#CLE |
DrawStyle-No, JoinStyle |
Change the join style of the line
JoinStyle |
|
0 |
Mitered |
1 |
Rounded |
#CLP |
DrawStyle-No, RGB, LinePattern-No |
The command changes the style of the line (e.g. dashed) For this a line pattern (LinePattern-No) must be defined.
TextStyle
#CTF |
TextStyle-No, <FontName>, Size(20), Alignment(0), DrawStyle-No.(0), Italic(0), LineSpace (0), CharacterSpace (0) |
Definition of a TextStyle with font (<FontName>), Size (in pixels; = 0 original size only applies to image fonts) and Alignment.
Alignment |
|
0 |
Left |
1 |
Center |
2 |
Right |
Specifying the alignment is only useful for multiline texts. The position of the text object itself is determined by the anchor (e.g. anchors 3, 6, and 9 for right-aligned).
The DrawStyle specifies the color. For performance reasons, we recommend simple filling without an outline. Italic enables italics and is specified in degrees (-45 ° ... + 45 °). The remaining two parameters specify the LineSpacing and additional CharacterSpacing.
#CTN |
TextStyle-No, <FontName> |
The command changes the font (<FontName>) of the TextStyle.
#CTS |
TextStyle-No, Size |
The Size (in pixels) of the font is changed (size = 0 original size is used; only for image fonts).
#CTA |
TextStyle-No, Alignment |
The command changes the Alignment of the text.
Alignment |
|
0 |
Left |
1 |
Center |
2 |
Right |
#CTC |
TextStyle, DrawStyle-No |
Change color using the DrawStyle (DrawStyle No.).
#CTI |
TextStyle, Italic |
Italic font: Set Italic in degrees (-45 ° ... + 45 °).
#CTG |
TextStyle, LineSpace, CharacterSpace (no change) |
An additional LineSpacing or CharacterSpacing is defined (in % of the character height). Negative values are also allowed.
Change space width (from V1.2)
#CTW |
TextStyle-No, SpaceCode, SpaceWidth(100) |
The width of the space can be taken from any other code (SpaceCode). The width can also be defined in %: Standard: 100 (SpaceWidth).
ButtonStyle
#CBP |
ButtonStyle-No, <ButtonNameNormal>, <ButtonNameDown> (=Normal), Width(0), Height(0) |
The command defines a ButtonStyle: Display two images for the unpressed (<ButtonNameNormal>) and pressed (<ButtonNameDown>) state. The size is determined by Width and Height (= 0 original size).
#CBD |
ButtonStyle-No, DrawStyle-Normal, DrawStyle-Down (=Normal), Width (0), Height (0), Radius(0) |
The command defines a ButtonStyle: Display of two DrawStyles for the unpressed (DrawStyleNormal) and pressed (DrawStyleDown) state. The following are further parameters for the Width and Height of the button and the corner rounding (Radius).
#CBT |
ButtonStyle-No, TextStyleNormal, TextStyleDown (=Normal), OffsetX(0), OffsetY(0) |
Define the text of the button style. The Offset specifies an additional distance in pixels where the text is positioned on the button.
CBO |
ButtonStyle-No, OffsetX(0), OffsetY (=OffsetX), Size(100), Angle(0) |
The behaviour of the button when pressed is defined. The button is drawn with the Offset (in pixels). The Size changes proportionally as a percentage. The Angle (in degrees) can also be changed.
CBS |
ButtonStyle-No, <SoundName> |
A jingle (<SoundName>) is played in the DownEvent of the ButtonStyle. If the parameter <SoundName> is empty, the jingle is deleted.
#CBG |
R (-30), G (=R), B (=R), Opacity(0) |
The deactivated state of a button is the percentage change in color of the ButtonStyle normal. Each color channel can be addressed individually. The Opacity can also be changed.
ColorRamp
#CCR |
ColorRamp-No, Offset1, RGB1, Transparency1, ... Offset10, RGB10, Transparancy10 |
The command defines a gradient. The base point (Offset) defines the color point in the course in percent, the color is indicated by RGB and Opacity. A maximum of 10 control points can be specified.
#CAC |
ColorRamp-No, Type (1), Time (100) |
The position of the vertices of the gradient are changed. The type specifies the animation type. Time in 1/100 s indicates the duration.
Type |
|
0 |
Stop animation |
1 |
Cyclic |
2 |
Cyclic backward |
3 |
PingPong |
4 |
PingPong backward |
|

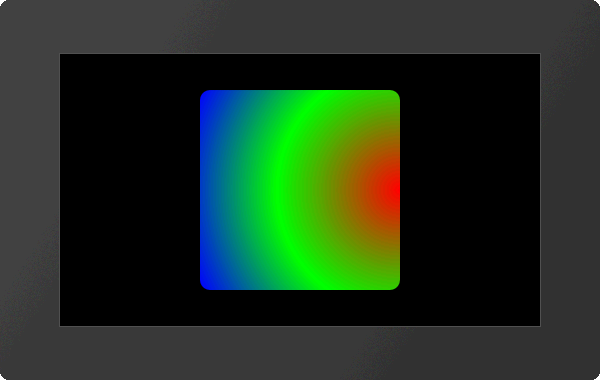

... #CCR 5,0,$FF0000,100,50,$00FF00,100,100,$0000FF,100 #CFR 15,5,5000,6 #CAC 5,3 ... |
LinePattern
#CDP |
LinePattern-No, Offset, Set1, Space1, ..., Set10, Space10 |
The command creates a line pattern. Set is the length in pixels of the stroke, space is the length without pixels. The Offset determines the start of the pattern in percent. A maximum of 10 control points can be specified.
LinePattern Examples |
||
SolidLine |
|
Standard |
DashLine |
|
#CDP 1,0(4∙lw),(2∙lw) |
DotLine |
|
#CDP 2,0,(lw),(2∙lw) |
DashDotLine |
|
#CDP 3,0(4∙lw),(2∙lw),(lw),(2∙lw) |
DashDotDotLine |
|
#CDP 4,0(4∙lw),(2∙lw),(lw),(2∙lw),(lw),(2∙lw) |
*lw = line width
#CAD |
LinePattern-No, Type (1), Time (100) |
The offset of the line pattern is changed. The type specifies the animation type. Time in 1/100 s indicates the duration.
Type |
|
0 |
Stop animation |
1 |
Cyclic |
2 |
Cyclic backward |
3 |
PingPong |
4 |
PingPong backward |
|

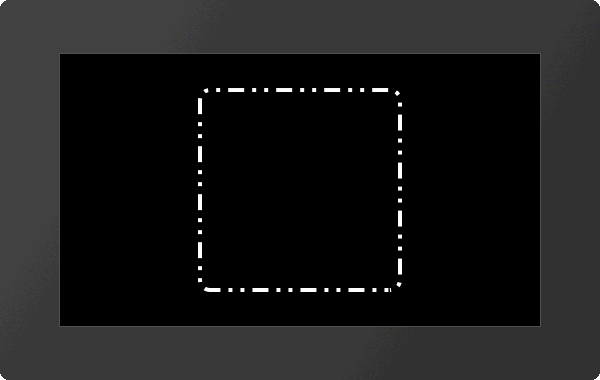

... #CDP 4,0,16,8,4,8,4,8 #CAD 4 ... |
