Files / SD-Card access #F

Commands to handle file access on the built-in SD-Card


Folder / Directory

Create folder

(File Directory Create)

#FDC

<Path>

Delete folder

(File Directory Delete)

#FDD

<Path>, Delete

Set working directory

(File Directory Set)

#FDS

<Path>

Send working directory

(File Directory Get)

#FDG


Send all folders and files (directory)

(File Directory Read binary)

#FDR

<Pfad> (act. working directory)

Send all folders and files (directory) (ASCII)

(File Directory read Ascii)

#FDA

<Pfad> (act. working directory)

Send all folders (directory)

(File Directory read dironly List)

#FDL

<Pfad> (act. working directory)

Files

Open file for writing

(File Write Open)

#FWO

<FileName>, Position [32-Bit] (End), Truncate(1)

Close file (write operation)

(File Write Close)

#FWC


Set write position in file

(File Write Position)

#FWP

Position [32-Bit]

Write data to file

(File Write Data binary)

#FWD

Number [32-Bit], Binary data

Write ASCII-String to file

(File Write Ascii)

#FWA

"String"

Write Unicode-String to file

(File Write Unicode)

#FWU

"String"

Write register values to file

(File Write Register)

#FWR

Register-ID, ...

Write string register to file

(File Write Stringregister)

#FWS

String-ID, ...

Write array to file

(File Write Array)

#FWY

Array-ID, ...

Write binary data from register to file

(File Write Register binary)

#FWV

Typ, Register-ID, Register-ID+1, ...

Write binary data from numeric array to file

(File Write numeric Array binary)

#FWX

Typ, Array-ID, Startindex(0), Size(1), ...

Write binary data from string array to file

(File Write Stringarray binary)

#FWQ

Array-ID, Startindex(0), Size(1),

Open file for reading

(File Read Open)

#FRO

<FileName>, Position [32-Bit] (Start)

Close file (read operation)

(File Read Close)

#FRC


Set read position in file

(File Read Position)

#FRP

Position [32-Bit]

Read and send data

(File Read Data binary)

#FRD

Number [32-Bit] (whole file)

Read ASCII string and write into string register

(File Read Ascii)

#FRA

String-ID, ...

Read Unicode string and write into string register

(File Read Unicode)

#FRU

String-ID, ...

Load data into register

(File Read Register)

#FRR

Register-ID, ...

Load data into string register

(File Read Stringregister)

#FRS

String-ID, ...

Read data (8-bit) and write into string register

(File Read Bytes to stringregister)

#FRB

String-ID, Number, Number [ID+1],...

Read data (16-bit) and write into string register

(File Read Words to stringregister)

#FRW

String-ID, Number, Number [ID+1],...

Read data into array

(File Read Array)

#FRY

Array-ID, ...

Read binary data into register

(File Read binary Data to register)

#FRV

Typ, Register-ID, Register-ID+1, ...

Read binary data into numeric array

(File Read binary Data to numeric array)

#FRX

Typ, Array-ID, Startindex(0), Size(1), ...

Read binary data into string array

(File Read binary Data to string array)

#FRQ

Array-ID, Startindex(0), Size(1),

Delete file

(File File Delete)

#FFD

<Filename>

General commands

Send file/folder information

(File File Info)

#FFI

<Path> (act. working directory)

Rename file/folder

(File File Rename)

#FFR

<Path>, <New Filename>, Replace (0)

Copy file/folder

(File File Copy)

#FFC

<Path>, <New Path>, Replace (0)

Move file/folder

(File File Move)

#FFM

<Path>, <New Path>, Replace (0)

Change time stamp of file/folder

(File change Timestamp)

#FFT

<Path>, Time, Date

Change attributes of file / folder

(File change Attribut)

#FFA

<Path>, Attribute

Load file names into string register

(File Names Files to stringregister)

#FNF

<Path> (act. working directory), ID (1)

Load subdirectories into string register

(File Names Directory to stringregister)

#FND

<Path> (act. working directory), ID (1)

Load file names into string array

(File Names Files to stringarray)

#FNA

Array-ID, WritePointer(0), <Path>, Regex-ID

Load subdirectories into string array

(File Names Directory to stringarray)

#FNB

Array-ID, WritePointer(0), <Path>, Regex-ID

Remove encryption

(File enKryption Format)

#FKF

<Format.all>


Folder / Directory

Create folder

#FDC

<Path>

The command creates a new folder. The <Path> parameter specifies the name and location.

...

#FDC <Project/NewPath>

...


Delete folder

#FDD

<Path>, Delete

The command deletes a folder. The <Path> parameter specifies the name and location.

Delete

0

Delete folder and content

1

Delete content only

...

#FDD <Project/NewPath>,0

...


Set working directory

#FDS

<Path>

The command sets the current working directory. With path </> you reach the root directory.

...

#FDS <Project>

...


Send working directory

#FDG

The command places the current working directory in the send buffer. The feedback is structured as follows:

ESC

F

D

G

Path

...


$1B

$46

$44

$47

'String' completed with $00


Send all folders and files (directory)

#FDR

<Pfad> (act. working directory)

The command places all folders and files of the current working directory in the send buffer. The feedback is structured as follows:

ESC

F

D

R

Path/

Filename

Size

Attribute

Time

Date

...

Ending

$1B

$46

$44

$52

'String' completed with $00

32-Bit value

8-Bit value

16-Bit value

16-Bit value

$00


Attribute

$01

Read only

$02

Hidden

$04

System

$20

Archive


...

#FDR

...


Send all folders and files (directory) (ASCII)

#FDA

<Pfad> (act. working directory)

The command places all folders and files of the current working directory in the send buffer as ASCII strings.

ESC

F

D

A

String

Ending

...

$1B

$46

$44

$41

Size, Attribute, Time, Date, Name

CRLF

...

#FDA

...


Send all folders (directory)

#FDL

<Pfad> (act. working directory)

The command places all folders of the current working directory in the send buffer. The feedback is structured as follows:

ESC

F

D

L

Directory-name


Ending


$1B

$46

$44

$4C

'String' completed with $00

$00

Files

Open file for writing

#FWO

<FileName>, Position [32-Bit] (End), Truncate(1)

The command opens (write only) or creates a file. The Position (32-bit value) indicates the write position in the file.

Truncate

0

Overwrite data

1

Truncate old data


Close file (write operation)

#FWC

The command closes an open file (write operation). The writing process is completed and it is ensured that all data has been written.


Set write position in file

#FWP

Position [32-Bit]

The command sets the write Position (32-bit value) at the specified position in the file. If the value is <0, the position is calculated from the end of the file


See also fposW()


Write data to file

#FWD

Number [32-Bit], Binary data

The command writes a Number (32-bit value) of Binary data to the opened file. This command is unsuitable for macro programming. It is used to transfer binary data via the interface.


Write ASCII-String to file

#FWA

"String"

The command writes an ASCII string (8 bits per character) into the open file.

...

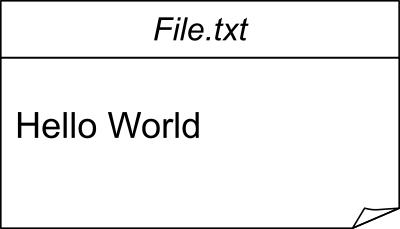

#FWO <Project/File.txt>

#FWA "Hello World"

#FWC

...


Write Unicode-String to file

#FWU

"String"

The command writes a Unicode string (16 bits per character) into the open file.

...

#FWO <Project/File.txt>

#FWU "Hello World"

#FWC

...


Write register values to file

#FWR

Register-ID, ...

The command writes the register value (Register-ID) to the open file. The value can be read out with the #FRR command. 5 bytes are required for each register.


Write string register values to file

#FWS

String-ID, ...

The command writes the content of the string register (String-ID) to the open file. The string can be read out with the command #FRS. 2 · (n + 1) bytes (n = number of letters) are required for each register.


Write array to file (from V1.4)

#FWY

Array-ID, ...

The command writes the content of the array (Array-ID) to the open file. The string can be read out with the command #FRY. For each integer or float array 6+4-n bytes (n=length of the array) are needed. A Unicode StringArray requires 11 + (Maximum Entrysize * Length of the array) bytes.


Write binary data from register to file (from V1.7)

#FWV

Typ, Register-ID, Register-ID+1, ...

The command writes the contents of the register (Register ID) in binary format to the open file. The register can be read out with the command #FRV.

Typ

7

Signed Byte

1 Byte

little endian

8

Unsigned Byte

1 Byte

15

Signed Integer

2 Byte

16

Unsigned Integer

2 Byte

23

Signed Integer

3 Byte

24

Unsigned Integer

3 Byte

31

Signed Integer

4 Byte

32

Unsigned Integer

4 Byte

33

Float

4 Byte

115

Signed Integer

2 Byte

big endian

116

Unsigned Integer

2 Byte

123

Signed Integer

3 Byte

124

Unsigned Integer

3 Byte

131

Signed Integer

4 Byte

132

Unsigned Integer

4 Byte

133

Float

4 Byte


Write binary data from numeric array to file (from V1.7)

#FWX

Typ, Array-ID, Startindex(0), Size(1), ...

The command writes the contents of a numeric array (Array ID) in binary format to the open file. The numeric array can be read out with the command #FRX.

Typ

7

Signed Byte

1 Byte

little endian

8

Unsigned Byte

1 Byte

15

Signed Integer

2 Byte

16

Unsigned Integer

2 Byte

23

Signed Integer

3 Byte

24

Unsigned Integer

3 Byte

31

Signed Integer

4 Byte

32

Unsigned Integer

4 Byte

33

Float

4 Byte

115

Signed Integer

2 Byte

big endian

116

Unsigned Integer

2 Byte

123

Signed Integer

3 Byte

124

Unsigned Integer

3 Byte

131

Signed Integer

4 Byte

132

Unsigned Integer

4 Byte

133

Float

4 Byte


Write binary data from string array to file (from V1.7)

#FWQ

Array-ID, Startindex(0), Size(1), ..

The command writes the contents of a string array (Array ID) in binary format to the open file. The string array can be read out with the command #FRQ.


Open file for reading

#FRO

<FileName>, Position [32-Bit] (Start)

The command opens (read only) a file. The Position (32-bit value) indicates the read position in the file.



Close file (read operation)

#FRC

The command closes an open file (read operation).


Set read position in file

#FRP

Position [32-Bit]

The command sets the read Position (32-bit value) at the specific position in the file. If the value is <0, the position is calculated from the end of the file


See also fposR()


Read and send data

#FRD

Number [32-Bit] (whole file)

The command reads a Number (32-bit value) of bytes from the open file and places the data in the send buffer. The feedback is structured as follows:

ESC

F

R

D

Number

Data 1

Data 2


Data n

...


$1B

$46

$52

$44

32-Bit value

8-Bit value

8-Bit value

8-Bit value


Read ASCII string and write into string register

#FRA

String-ID, ...

The command reads an ASCII string (8 bits per character) up to the character "\n" and stores it in a string register (String-ID).


Read Unicode string and write into string register

#FRU

String-ID, ...

The command reads a Unicode string (16 bits per character) up to the character "\n" and stores it in a string register (String-ID).


Load data into register

#FRR

Register-ID, ...

The command reads back a register written with #FRW and saves it in the register (Register-ID).


Load data into string register

#FRS

String-ID, ...

The command reads back a string register written with #FRS and saves it in the string register (String-ID).


Read data (8-Bit) and write into string register

#FRB

String-ID, Number, Number [ID+1],...

The command reads a Number (1 ... 250) of bytes and saves it in the string register (String-ID).


Read data (16-Bit) and write into string register

#FRW

String-ID, Number, Number [ID+1],...

The command reads a Number (1 ... 250) of Words and saves it in the string register (String-ID).


Read data into array (from V1.4)

#FRY

Array-ID, ...

The command reads back an array written with #FWY and saves it in the array (Array-ID).


Read binary data into register (from V1.7)

#FRV

Typ, Register-ID, Register-ID+1, ...

The command reads back a binary register written with #FWV and saves it in the register (Register-ID).

Typ

7

Signed Byte

1 Byte

little endian

8

Unsigned Byte

1 Byte

15

Signed Integer

2 Byte

16

Unsigned Integer

2 Byte

23

Signed Integer

3 Byte

24

Unsigned Integer

3 Byte

31

Signed Integer

4 Byte

32

Unsigned Integer

4 Byte

33

Float

4 Byte

115

Signed Integer

2 Byte

big endian

116

Unsigned Integer

2 Byte

123

Signed Integer

3 Byte

124

Unsigned Integer

3 Byte

131

Signed Integer

4 Byte

132

Unsigned Integer

4 Byte

133

Float

4 Byte


Read binary data into numeric array (from V1.7)

#FRX

Typ, Array-ID, Startindex(0), Size(1), ...

The command reads back a binary numeric array written with #FWX and saves it in the register (Array-ID).

Typ

7

Signed Byte

1 Byte

little endian

8

Unsigned Byte

1 Byte

15

Signed Integer

2 Byte

16

Unsigned Integer

2 Byte

23

Signed Integer

3 Byte

24

Unsigned Integer

3 Byte

31

Signed Integer

4 Byte

32

Unsigned Integer

4 Byte

33

Float

4 Byte

115

Signed Integer

2 Byte

big endian

116

Unsigned Integer

2 Byte

123

Signed Integer

3 Byte

124

Unsigned Integer

3 Byte

131

Signed Integer

4 Byte

132

Unsigned Integer

4 Byte

133

Float

4 Byte


Read binary data into string array (from V1.7)

#FRQ

Array-ID, Startindex(0), Size(1), ..

The command reads back a binary string array written with #FWQ and saves it in the register (Array-ID).


Delete file

#FFD

<Filename>

The command deletes a file (<Filename>)

General commands

Send file/folder information

#FFI

<Path> (act. working directory)

The command puts all information about the folder / file (such as time stamp, size) in the send buffer. If the folder / file does not exist, an empty string is returned, the remaining parameters are no longer transferred. The feedback is structured as follows:

ESC

F

F

I

Directory-/

File-name

Size

Attribute

Time

Date

...


$1B

$46

$46

$49

'String' completed with $00

32-Bit value

8-Bit value

16-Bit value

16-Bit value


See also fileS(), fileA(), fileT()


Rename file/folder

#FFR

<Path>, <New Filename>, Replace (0)

The command changes the specified <Path> to a new name (<New Filename> is only the new name, without path).

Replace

0

Do not rename if folder / file already exists

1

Delete existing folder / file and rename it


Copy file/folder

#FFC

<Path>, <New Path>, Replace (0)

The command copies the specified folder, the specified file (<Path>) to a new location (<New Path>).

Replace

0

Do not rename if folder / file already exists

1

Delete existing folder / file and rename it


Move file/folder

#FFM

<Path>, <New Path>, Replace (0)

The command moves the specified folder, the specified file (<Path>) to a new location (<New Path>).

Replace

0

Do not rename if folder / file already exists

1

Delete existing folder / file and rename it


Change time stamp of file/folder

#FFT

<Path>, Time, Date

The command changes the time stamp of the folder or the file (<Path>):



Bit

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

0

Time

Hour [0...23]

Minute [0...59]

Second/2 [0...29]

Date

Year (from 1.1.1980 0:0:0 Hour) [0...127]

Month [1...12]

Day [1...31]


Example for calculation:

Time = (Hour<<11) + (Minute<<5) + (Second>>1);

Date = ((Year-1980)<<9) + (Month<<5) + Day;


See also fatT(datetime), fatD(datetime), fattime(Fat-Time, Fat-Date)


Change attributes of file/folder

#FFA

<Path>, Attribute

The command sets the Attributes of the folder / file. The attributes can be set simultaneously with bit coding.

Attribute

$01

Read only

$02

Hidden

$04

System

$20

Archive


See also fileA()


Load file names into string register (from V1.1)

#FNF

<Path> (act. working directory), ID (1)

The command saves all file names from the <Path> in the string register (String-ID = ID ... IDn). The number is stored in the register (Register ID = ID). (You can search with patterns ?/* e.g. * .txt stores all text files)


Load subdirectories into string register (from V1.1)

#FND

<Path> (act. working directory), ID (1)

The command saves all folder names that are in the  <Path> in the string register (String-ID = ID ... IDn). The number is stored in the register Rregister ID = ID). (You can search with patterns ?/*, e.g. *New* stores all directories in which the word "New" occurs)


Load file names into string array (from V1.7)

#FNA

Array-ID, WritePointer(0), <Path>, Regex-ID

The command saves all folder names that are in the <Pfad> in the string array (Array-ID).


Load subdirectories into string array (from V1.7)

#FNB

Array-ID, WritePointer(0), <Path>, Regex-ID

The command saves all folder names that are in the <Pfad> in the string array (Array-ID).


Remove encryption (from V1.6)

#FKF

<Format.all>

The SD card, encrypted by uniTFTDesigner, will be formatted (Attention: all data will be lost) and the encryption will be removed. The parameter must be specified exactly identical.
