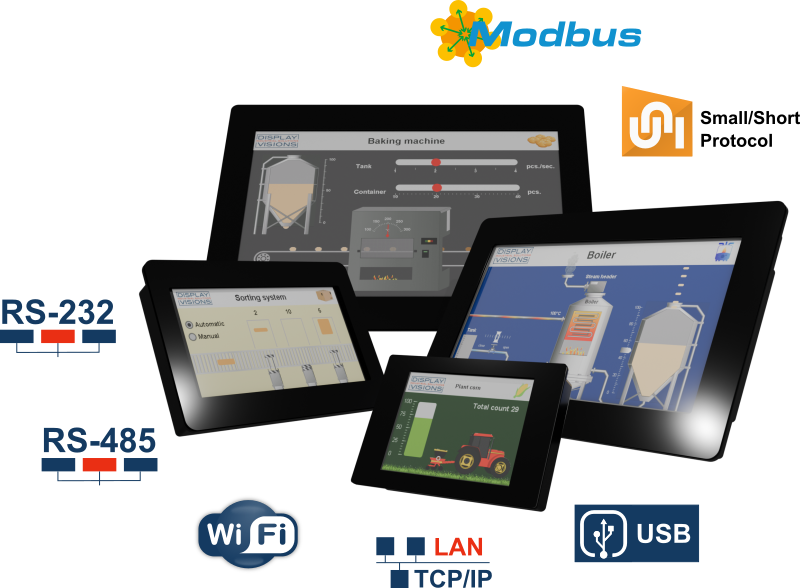

MOdbus RTU/TCP REmote display

with Touch panel

Features

  • Brilliant color display with typ. 1,000 cd/m²
  • Touch panel included
  • Display is in slave mode
  • Wide viewing angle with ±170°
  • Modbus RTU and TCP (Remote)
  • Free definable display content: text, pictures, value, bargraph, instrument...
  • Supports up to 256 modbus register
  • Many interface options, RS485, LAN, WiFi, Modbus....
  • plus USB-C for EA HMI070-xU-16ATS
  • Wide power supply range 5V..30V=
  • Wall mount and panel mount
  • More sizes are under development
  • Quick and easy cable commissioning thanks to tool-free push-in connection technology
  • The display supports communication with over 20 different PLC models, including Siemens Logo!, S7-200, S7-1200/1500, S7-300/400, Allen Bradley, Mitsubishi FX, Beckhoff, easyE4 and many more.

ordering code

4.3" Touch, WiFi and RS485

EA HMI043WU-42ATCS

4.3" Touch, LAN, WiFi and RS485

EA HMI043LU-42ATCS

7.0" Touch, WiFi, RS485 and USB

EA HMI070WU-16ATCS

7.0" Touch, LAN, WiFi, RS485 and USB

EA HMI070LU-16ATCS




4.3" Touch, Modbus RTU/TCP, WiFi and RS485

EA HMI043WM-42ATCS

4.3" Touch, Modbus RTU/TCP, LAN, WiFi and RS485

EA HMI043LM-42ATCS

7.0" Touch, Modbus RTU/TCP, WiFi and RS485

EA HMI070WM-16ATCS

7.0" Touch, Modbus RTU/TCP, LAN, WiFi and RS485

EA HMI070LM-16ATCS


Accessories

Mounting clips (2 pcs.)

EA 00C1-1KNS

24V= power supply unit 110/230V~

EA PS24V-18W

Y cable for power supply (for 1-2 displays)

EA KH21-102Y

USB <-> RS-485 Adaptor

EA 9790-USB485
