EA HMI Series
Measure, monitor and visualize. The new HMI series expands a classic control unit in control cabinet with an color display inclusive touch. Measured values can be displayed and settings can be made by touch. Thanks to edge computing, even complex and visually appealing screen layouts can be easily implemented.
Display is remote (slave) on Modbus.
WiFi, RS232, RS-485, Ethernet
Program your control tasks via USB, LAN, RS232, RS485 and connect the desired HMI displays via RS232, RS-485 or WiFi. The HMI modules understand various protocols, like Modbus. In Modbus display is always slave. Address can be set individually. The modules come in a high-quality injection-molded plastic housing. This may be used for wall mounting, but it also perfectly suits for front panel installation. The modules itself use a high brightness, all angle view IPS display. Perfect for indoor and outdoor usage.
Arbitrarily expandable
Different requirements need different displays. Choose from different sizes. All displays were developed in Germany. The support includes at any time a direct contact person from the development incl. assistance in programming.
|
2.8“ |
4.3“ |
7“ |
Unit |
Resolution |
320x240 |
480x272 |
1024x600 |
Pixel |
Dimension |
84x58 |
114x84 |
190x125 |
mm |
Interfaces1 |
RS485, WiFi, LAN, USB2 |
RS232, RS485, WiFi, LAN |
RS232, RS485, WiFi, LAN, USB2 |
|
Protocol1 |
Modbus, Small, Short |
Modbus, Small, Short |
Modbus, Small, Short |
|
U-Plaster mount |
no |
no |
no |
|
Wallmount |
yes |
yes |
yes |
|
Front panel mount |
yes |
yes |
yes |
|
Display |
IPS with PCAP, optically bonded |
|||
1 depends on part number
2 no Modbus
Wall mounting, Panel Mounting
Different locations require different housings. Therefore DISPLAY VISIONS plans different housing. For the small 1.5" display a flush mounting variant is also planned (U-plaster).
In each case, the front is made of scratch-resistant glass. Thanks to a touch-sensitive surface, direct and intuitive interactions are possible. All brilliant displays with 1,000 cd/m² in outstanding IPS technology for an all-round viewing angle and stable colors.
Accessories
There are some accessories available to give you an easy start.
Power supply

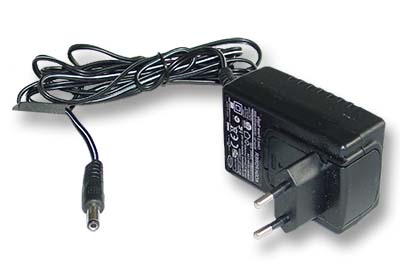

EA PS24V-18W: The 24V plug-in power supply provides stable voltage. It comes with a plug for Europe, USA, Australia and UK. On DC site there's a 2.1mm hollow plug, cable is about 1m long. It got enough power to supply 2-3 displays.
Y cable:

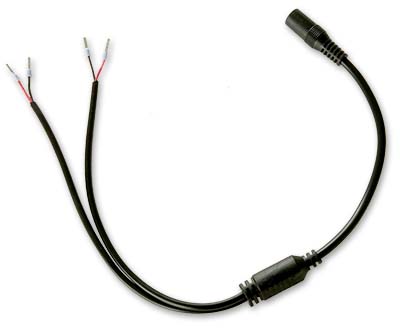

EA KH21-102Y: This cable matches to the power supply above. It has 2 open ends to supply up to 2 displays directly.
.

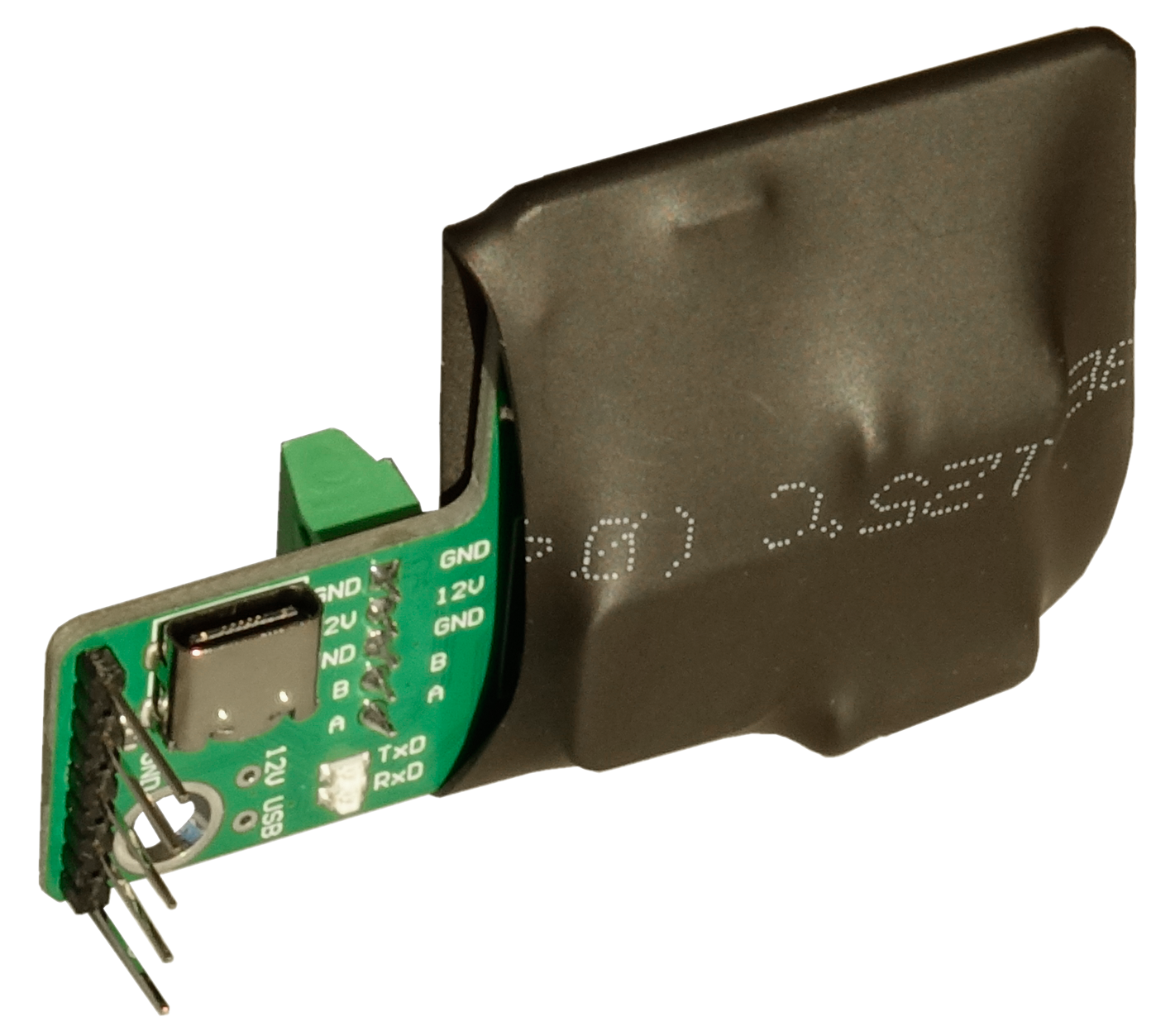

USB - RS485 interface

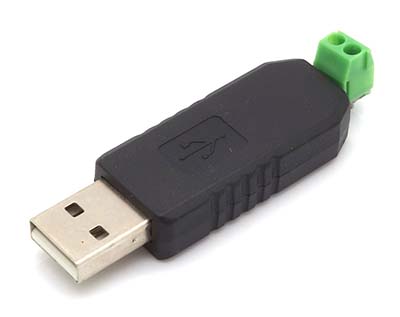

EA 9790-USB485: With this USB plug it becomes easy to connect any RS485 display to the PC e.g. for project update.
