Diagrams #D

Command group to display line graphs.


Coordinate system

Place coordinate system

(Diagram Coordinate Place)

#DCP*

Obj-ID, x, y, Anchor, Image-No., Offset-x, Offset-y, Width, Height, Step-x, Step-y

Place text form coordinate system

(Diagram Coordinate Text)

#DCT*

Obj-ID, Axis-No., Textstyle-No.,Formatted string, x, y, Anchor, Angle, Alignment, Start value, Step

Set start values for coordinate system

(Diagram Coordinate Set)

#DCS*

Obj-ID, Axis-No., Start value

Set visibility for labeling of coordinate system

(Diagram Coordinate Visible)

#DCV

Obj-ID, Axis-No., Visibility, Labeling-No.

Lines

Define line

(Diagram Line Place)

#DLP*

Obj-ID, Line-No., DrawStyle, Connection type, y-Axis-No., y-Array-ID, x-Axis-No., x-Array-ID(negative)/Values per step

Define marker for line

(Diagram Line Marker)

#DLM

Obj-ID, Line-No., Visibility, Marker Obj-ID

Define scaling factor for line

(Diagram Line Calculate)

#DLC

Obj-ID, Line-No., Factor-y, Offset-y, Factor-x, Offset-x

Define visibility for line

(Diagram Line Visible)

#DLV

Obj.ID, Visibility, Line-Nr., ...,Line-Nr [Nr+1]

Settings Diagram

Set touch functionality

(Diagram Define Touch)

#DTD

Obj-ID,Move, Scale

Change window size of coordinate system (absolute)

(Diagram Window Absolut)

#DWA

Obj-ID, x., y, Scale-x(0), Scale-y(0)

Change window size of coordinate system (relative)

(Diagram Window Relativ)

#DWR

Obj-ID, x., y, Scale-x(0), Scale-y(0)

Change zoom of coordinate system

(Diagram Window Zoom)

#DWZ

Obj-ID, Scale-x, Scale-y(0)

Change start value of coordinate system

(Diagram Window Value)

#DWV

Obj-ID, Axis-No., Value, Scale(0)

Change Auto Scroll from Coordinate System

(Diagram Window Scroll)

#DWS

Obj-ID, Scroll, Step,  Update Labeling

All commands marked with * are used by the Diagram Editor (part of uniTFT Designer) to define diagrams. They are not explained in detail below.




Coordinate system

The diagram editor (part of uniTFT Designer) is used to place and set the coordinate system.

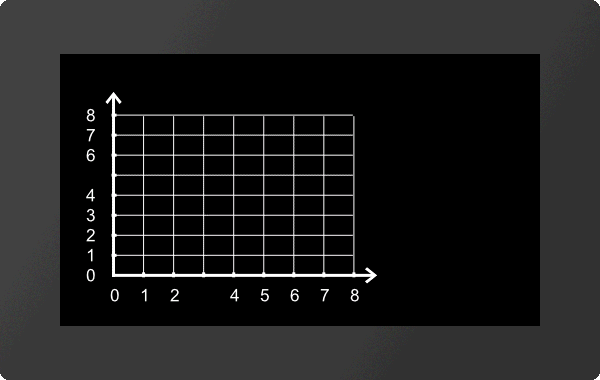

Set visibility for labeling of coordinate system

#DCV

Obj-ID, Axis-No., Visibility, Labeling-No.

This command sets the visibility of individual axis labels for the diagram with the Obj.ID. The axis number can be found in the diagram editor. The Index parameter (1-...) specifies for which text in the axis labelling the visibility should be changed.

Visibility

0

Invisible

1

Visible

...

#DCV 1,1,0,4      /**x-axis

#DCV 1,2,0,6      /**y-axis

...

Lines

The definition of lines and the assignment to an array is done by the Diagram Editor (part of the uniTFT Designer).

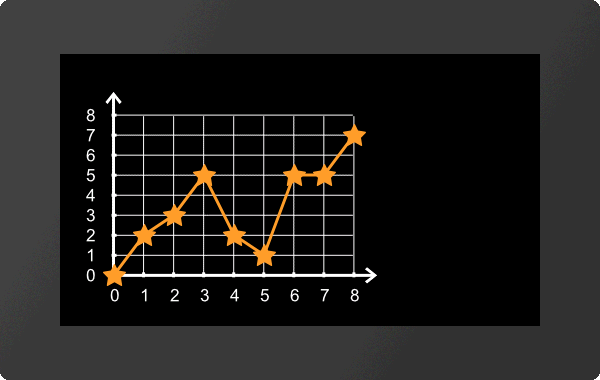

Define marker for line

#DLM

Obj-ID, Line-No., Visibility, Marker Obj-ID

This command sets the visibility of markers (Marker Obj-ID) for the diagram with the Obj-ID. Any existing object can be used as a marker. The line number can be found in the diagram editor.

Visibility

0

Invisible

1

At the end

2

All

4

Min/Max


...

#DLM 1,1,2,2

...

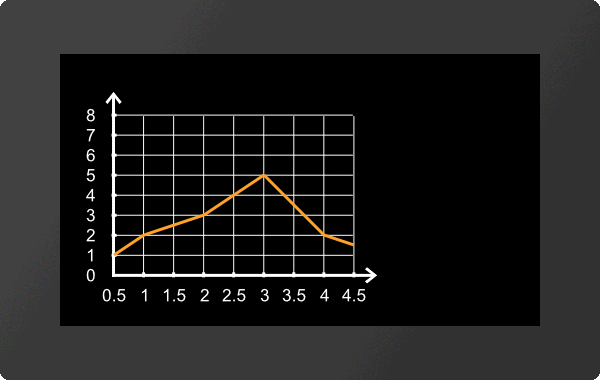

Define scaling factor for line

#DLC

Obj-ID, Line-No., Factor-y, Offset-y, Factor-x, Offset-x

The command sets the scaling factor of the line (Line no.) for the diagram with the Obj-ID. The line no. can be found in the diagram editor. This allows the value range of the raw data (e.g. analog input) to be adapted to the output values (Factor-y / Offset-y). If an array is also used for the x-axis, these values can also be scaled accordingly (Factor-x / Offset-x)


...

#DLC 1,1,0.5,2,1,0

...


Define visibility for line

#DLV

Obj.ID, Visibility, Line-Nr., ...,Line-Nr [Nr+1]

The command sets the visibility of the line (Line No.) for the diagram with the Obj-ID.

Visibility

0

Invisible

1

Visible

Settings Diagram

The definition of lines and the assignment to an array is done by the Diagram Editor (part of the uniTFT Designer).


Set touch functionality

#DTD

Obj-ID,Move, Scale

The command sets the touch functionality for the diagram with the Obj-ID. For both movement and scaling it can be specified whether and in which direction touch events are evaluated.

Move

0

No movement

1

only in x-direction

2

only in y-direction

3

in x- and y-direction


Scale

0

No scaling

1

only in x-direction

2

only in y-direction

3

in x- and y-direction

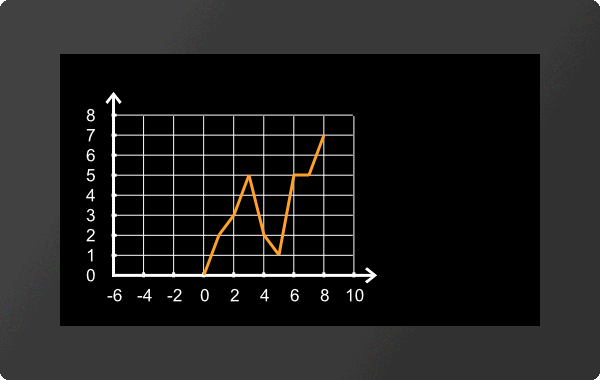

Change window size of coordinate system (absolute)

#DWA

Obj-ID, x., y, Scale-x(0), Scale-y(0)

The command changes the window size of the coordinate system of the diagram with the Obj-ID absolute. The displacement in x and y direction is given in pixels and the scaling in percent.


...

#DWA 1,30,0,200,0

...


Change window size of coordinate system (relative)

#DWR

Obj-ID, x., y, Scale-x(0), Scale-y(0)

The command changes the window size of the coordinate system of the diagram with the Obj-ID relative. The displacement in x and y direction is given in pixels and the scaling in percent.

...

#DWR 1,-90,0,50,0

...

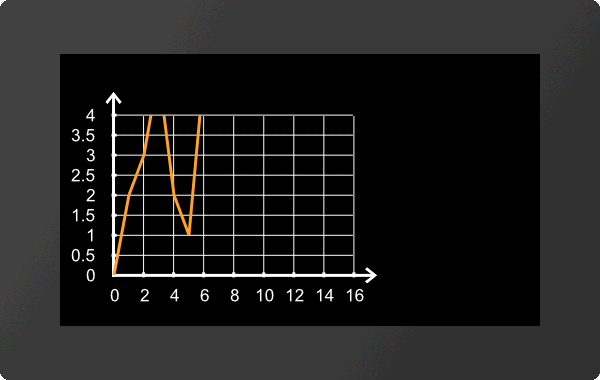

Change zoom of coordinate system

#DWZ

Obj-ID, Scale-x, Scale-y(0)

The command changes the zoom of the coordinate system of the diagram with the Obj-ID. The scaling is given in percent.

...

#DWZ 1,50,200

...

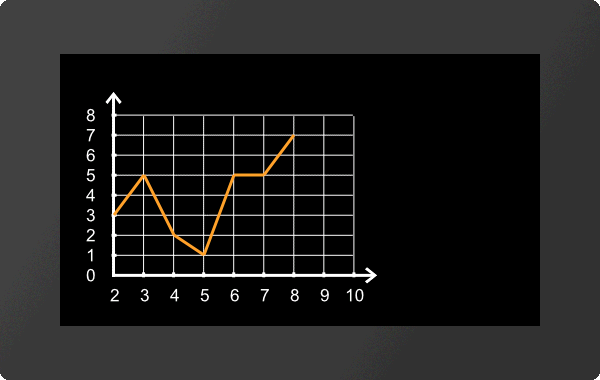

Change start value of coordinate system

#DWV

Obj-ID, Axis-No., Value, Scale(0)

The command changes the start value of the coordinate system of the diagram with the Obj-ID. The axis number can be found in the diagram editor.


...

#DWV 1,1,2

...

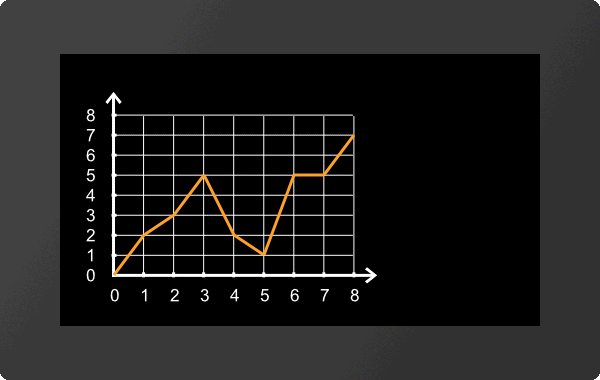

Change Auto Scroll from Coordinate System

#DWS

Obj-ID, Scroll, Step,  Update Labeling

The command changes the auto-scroll behavior of the coordinate system of the diagram with the Obj-ID. The Scroll parameter enables or disables the automatic scrolling. The step size specifies how far back the coordinate system is moved at the end. The value is a factor (float) which is multiplied by the step size of the coordinate system. With the parameter Update labeling you can specify whether the values of the labeling should change when scrolling.


Scroll

0

Deactivate

1

Activate


Update labeling

0

Do not adjust labeling

1

Adjust labeling
