General
The EA uniTFT series provides sophisticated graphical functions and intuitive menu control with its built-in instruction set. Thanks to the integrated instruction set and the Windows design software uniTFTDesigner, not only electronics specialists, but also experts in the field of design and user guidance are able to create the entire HMI.
The display modules are immediately ready for operation with 3.3 V, controlled via the built-in serial interfaces RS232, SPI, I²C or USB.
Object-oriented "programming", the wide set of commands, and the integrated but extensible Unicode fonts make "time-to-market" a breeze.
Currently are 3 different sizes available: 5" with 800x480 dots, 7" IPS with 1024x600 dots and 1000cd/m² and 10.1" IPS with 1280x800 dots and 1000cd/m².
Smaller sizes starting with 2" (IPS 320x240) ending with 4.3" (IPS 480x272) and capacitive touchpanel are available in the "small-series" EA uniTFTs. The commands are largely compatible. The design software uniTFTDesigner offers migration tools.
Advantage |
Standard TFT |
EA uniTFT(s) |
Quality |
Consumer |
Non-consumer |
Brightness |
250cd |
1000cd (typ.) |
Viewing angle |
Limited +/-50° (typ.) |
Up to 340° |
Color |
TN with Gray inversion effect |
IPS: no color shift |
Touch |
resistive |
PCAP incl. controller |
Interface |
8-/16 Bit data bus |
I²C or SPI or USB |
Availability |
Minimum order quantity |
Ex stock |
Longevity |
1 year or more |
Minimum of 8 years |
Support |
None unless high quantity |
Bundled with product purchase |
ce / EMC |
None |
Tested and certified |
Software |
Place dot by dot to create character or touch buttons |
- High level commands included - Graphics development software f.o.c. |
To get an easy introduction to the use of the commands we have a collection of short explanatory videos with the uniTFT Academy online. You are welcome to subscribe to our Youtube channel.
|
|
ACCESSORIES

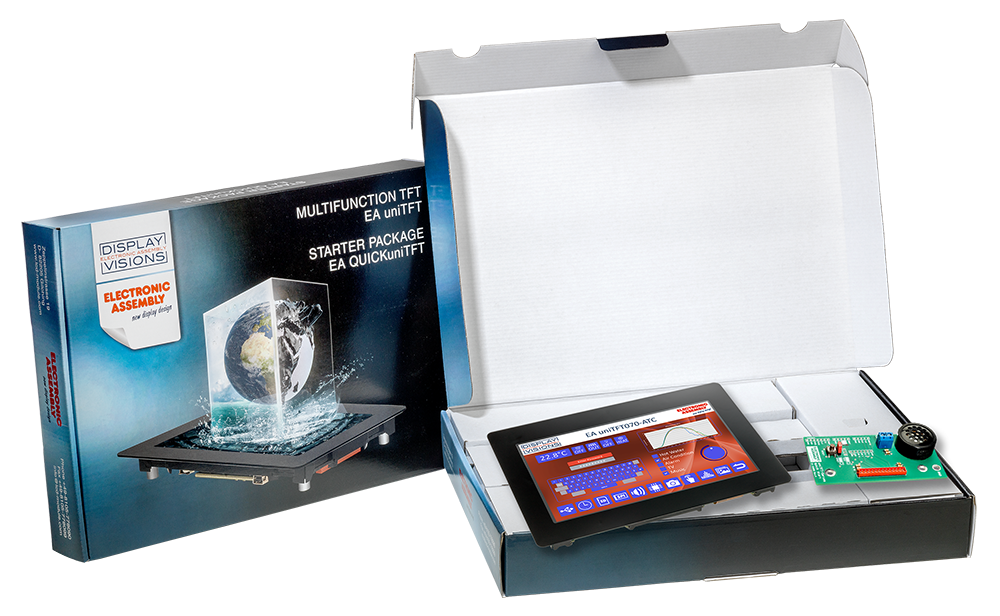

EA QUICKuniTFT050C, QUICKuniTFT070C, QUICKuniTFT101C
There are some packages including a display and power supply to perform a quick and easy start
Quick-Start Set: Starter board (speaker, reset, interface-breakout, power supply) |
|
with capacitive 5" display module EA uniTFT050-ATC |
EA QUICKuniTFT050C |
with capacitive 7" display module EA uniTFT070-ATC |
EA QUICKuniTFT070C |
with capacitive 10.1" display module EA uniTFT101-ATC |
EA QUICKuniTFT101C |
MICROMATCH SOCKET
Each display comes with 2 pcs. red MicroMatch connectors. The mating connector are available as an accessory. Please note that for each display 2 pcs. are necessary.

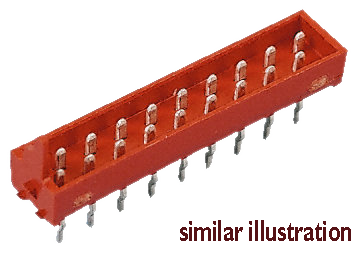

MicroMatch THT, 26 position mating connector for soldering (2 pieces needed)
|
EA B2B127M-26T |

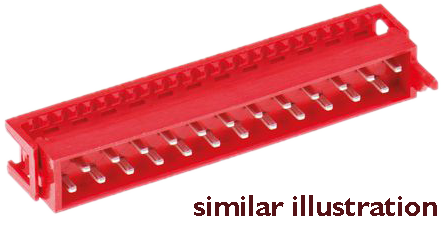

MicroMatch ribbon cable, 26 position mating connector crimp (2 pieces needed)
|
EA B2B127M-26Q |
CABLE

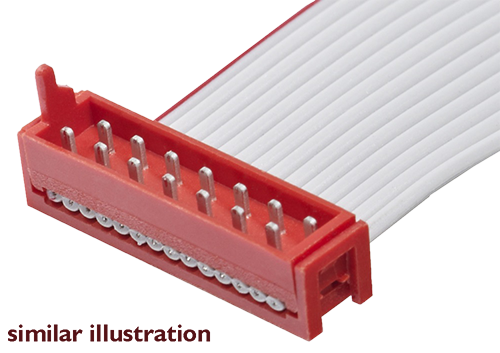

As an accessory a ready made cable (25 cm / 1 inch long) with MicroMatch connector and an open end is available. Please be aware of additional series resistance and voltage loss for power supply.
Cable (25 cm) with crimped connectors (2 pieces needed)
|
EA KM-126 |
