EA HMI Series Hardware

Connection EA HMI070XX-16ATCS

The EA HMI070XX-16ATCS is made for wall-mount or installation in equipment.

Commissioning is quick and easy thanks to tool-free push-in connection technology

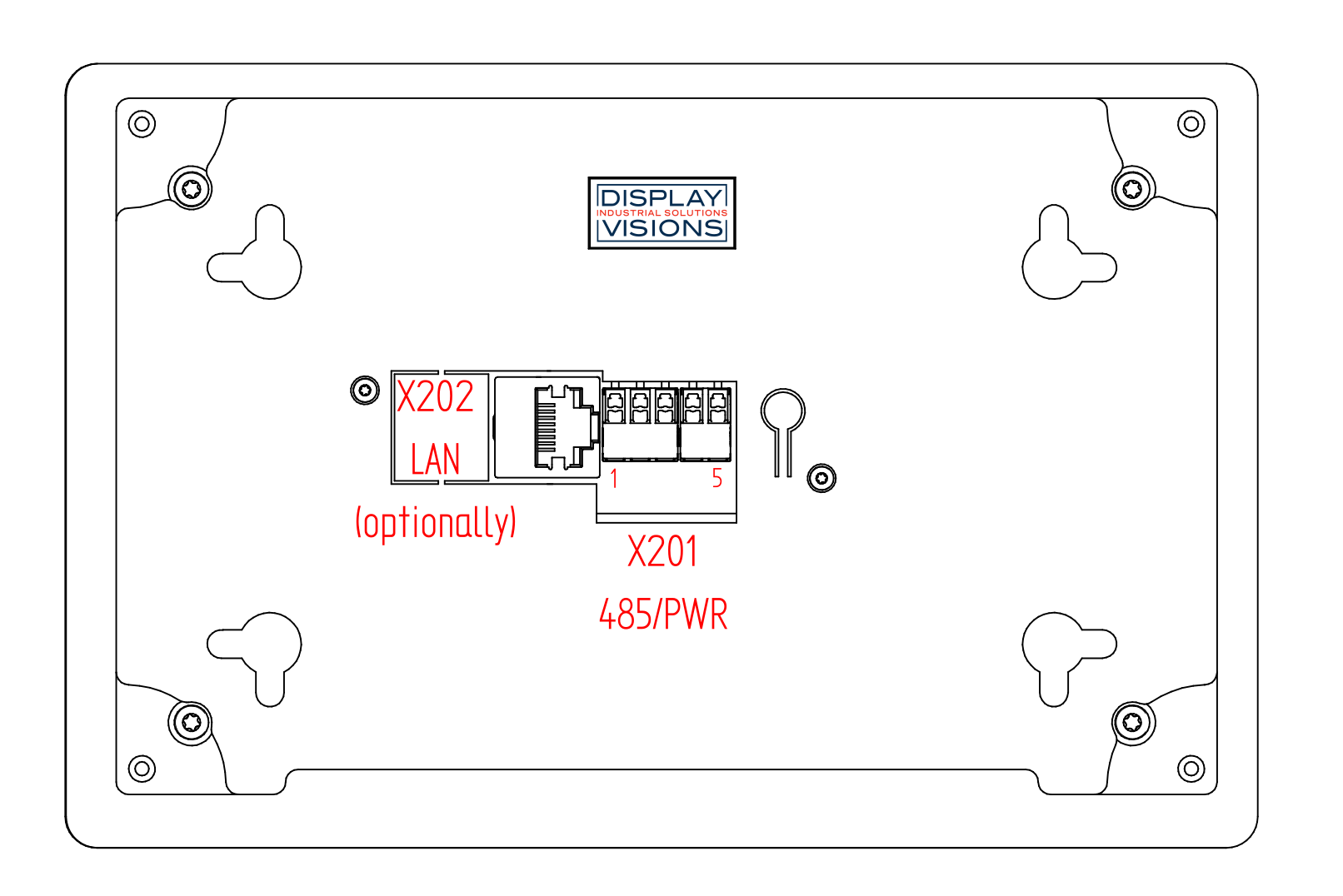

EA HMI070WU-16ATCS, EA HMI070WM-16ATCS, EA HMI070LU-16ATCS, EA HMI070LM-16ATCS

X201 provides RS-485 signals and power supply. X202 is optionally assembled for Ethernet connection via RJ-45.

Power Supply and RS-485 (X201)

The white terminal blocks provide a tool-free connection for wires from AWG 12 to AWG 28, which is 0,09 to 4 mm². The wire should be stripped for 10 mm length. To release simply insert a screw driver into the slot above the cable entry and pull out the cable. Also to insert a cable litz, a screw driver need to be used meanwhile.

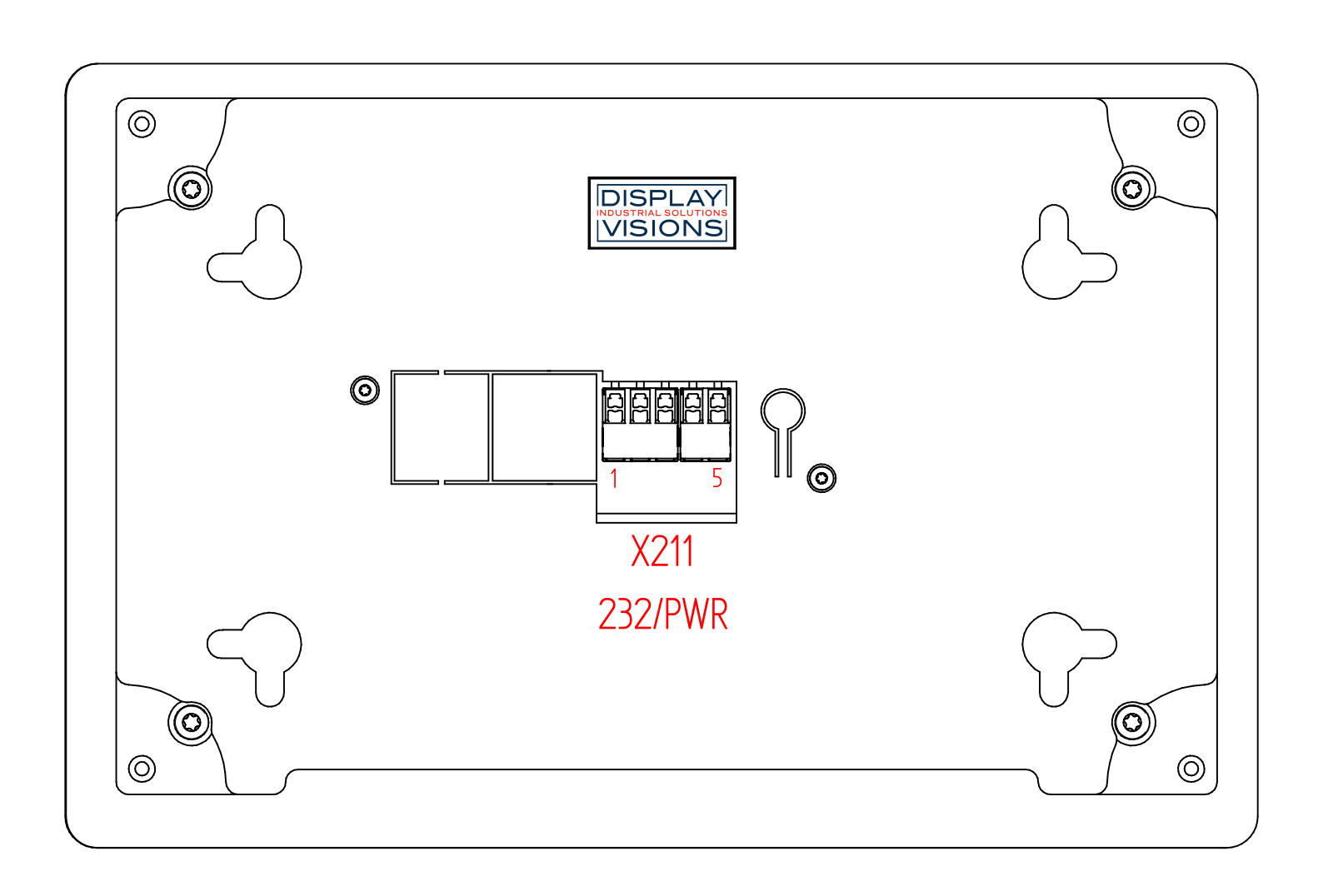

EA HMI070RU-16ATCS

X201 provides RS-485 signals and power supply. X202 is optionally assembled for Ethernet connection via RJ-45.

Power Supply and RS-232 (X211)

The white terminal blocks provide a tool-free connection for wires from AWG 12 to AWG 28, which is 0,09 to 4 mm². The wire should be stripped for 10 mm length. To release simply insert a screw driver into the slot above the cable entry and pull out the cable. Also to insert a cable litz, a screw driver need to be used meanwhile.
