EA HMI043XX-42ATCS
HMI Display with Touch 4.3"


Wall Mount

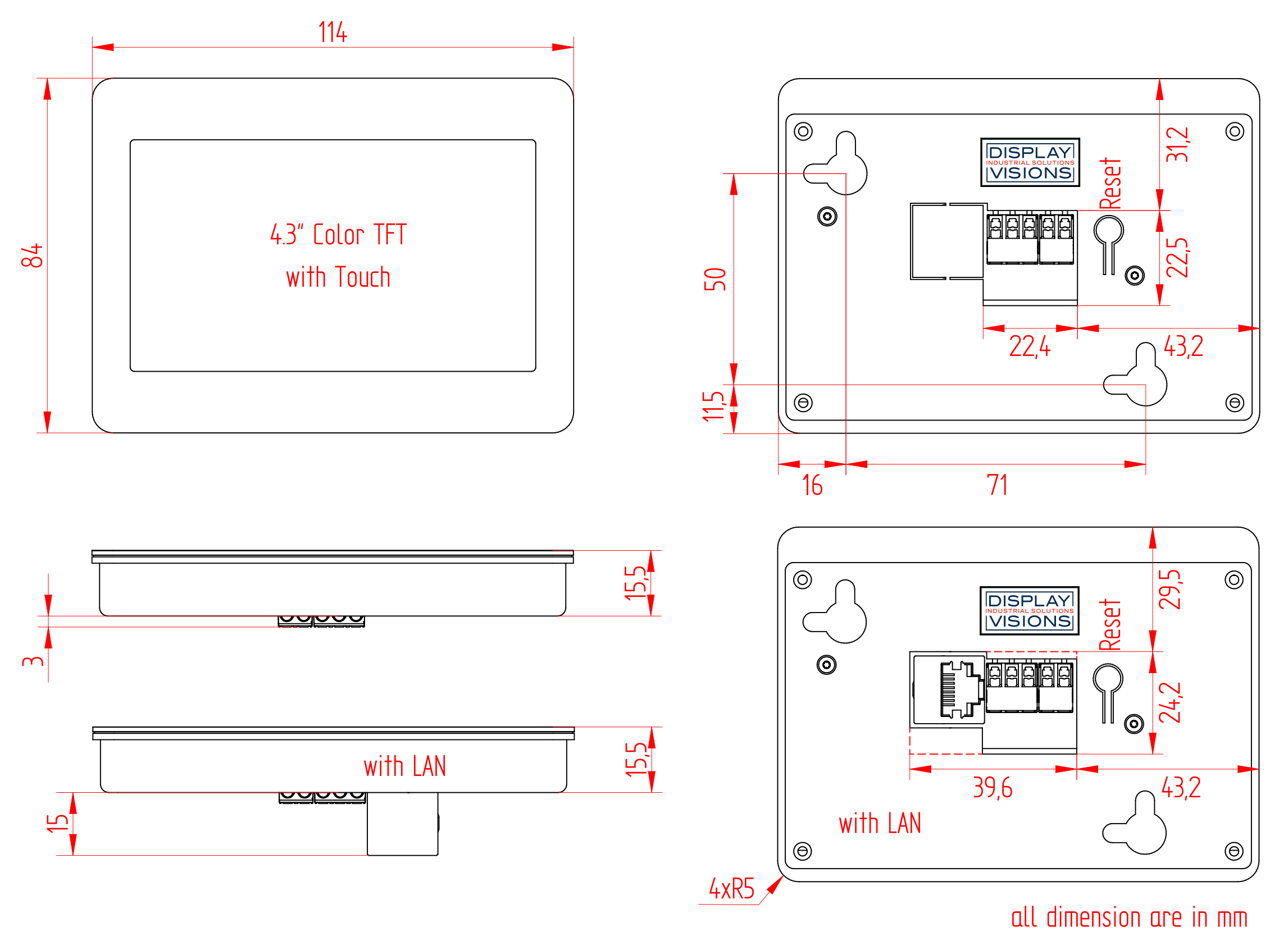

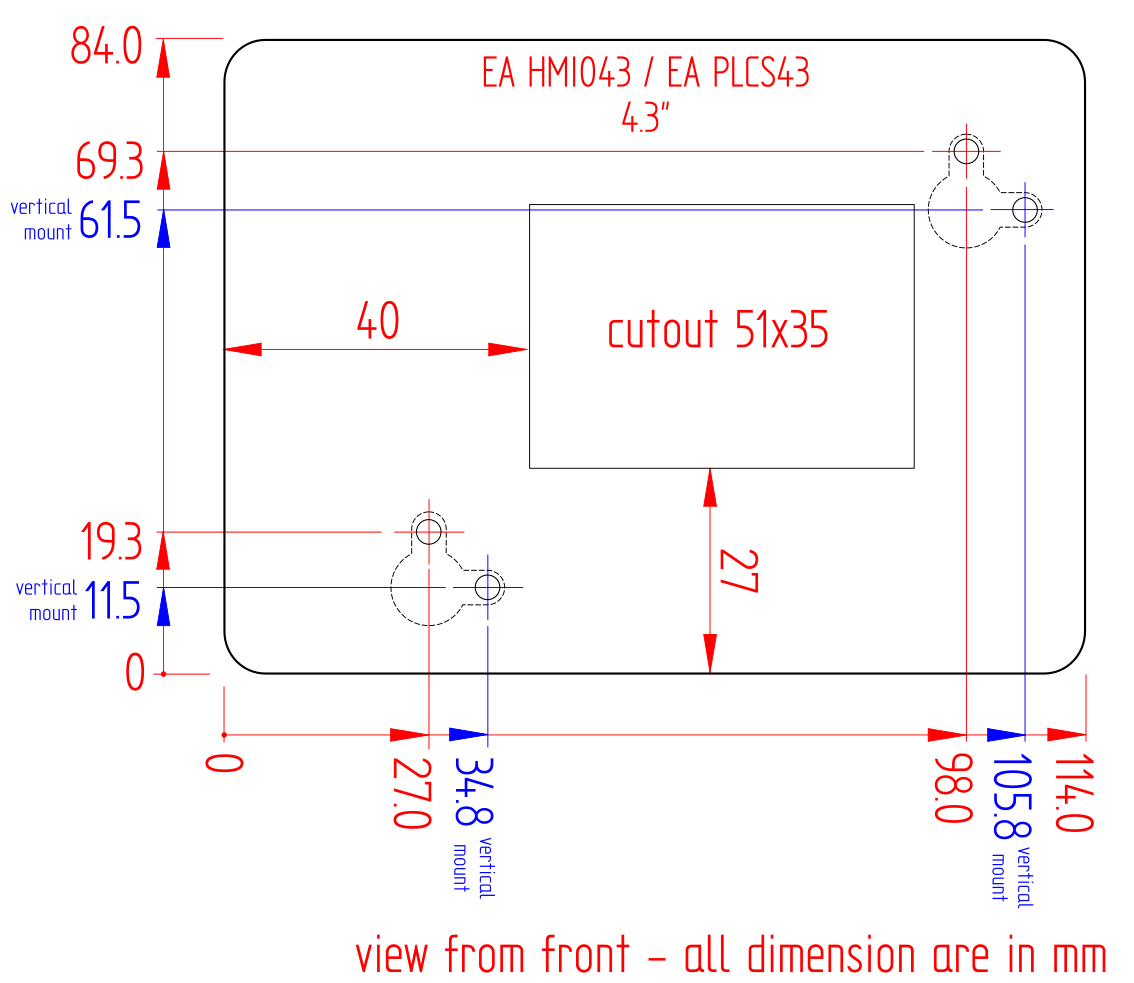

The EA HMI043 is prepared for easy wall mount. Simply fixed by 2 screws 4x16 DIN 7981 or similar. Note that you need a cutout of 51x35 mm for cable and RJ45 connector.

Display may be mounted horizontally (landscape mode) or vertically (portrait mode). See dimensions for vertical mount in blue color.

Please find here a drilling template as a pdf to print out.


This is view from front side:



Panel Mount

The EA HMI043 can be easily installed in any front panel. It's made for panel thickness from 1.0mm to 6.0mm and will be fixed by 2 or 4 mounting clips EA 00C1-1KNS (please order separately). Assembly is done by screws (included).


Panel thickness

Recommended screws


1.0~4.0 mm

2.5x10

Do not use screw longer than 10mm. Otherwise display could be damaged!

3.0~6.0 mm

2.5x12

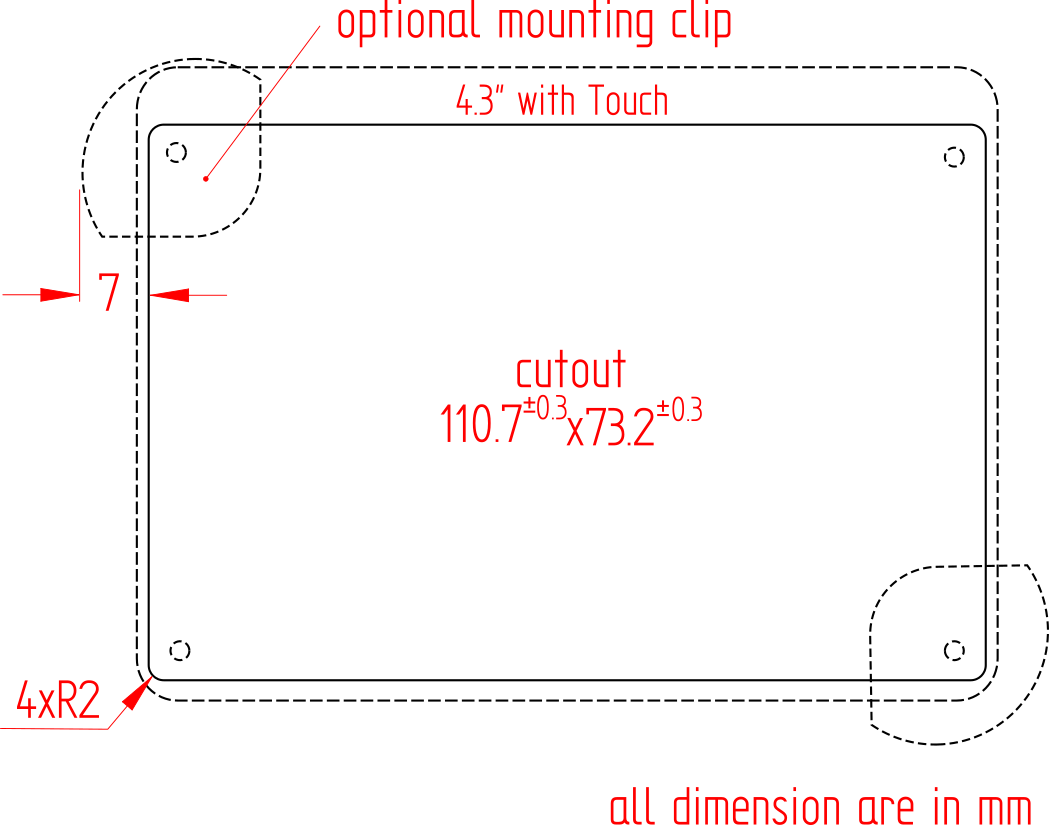

Recommended cutout is 110.7x73.2mm. The dashed area represents the display outline and the mounting clips.

This is view from front:
